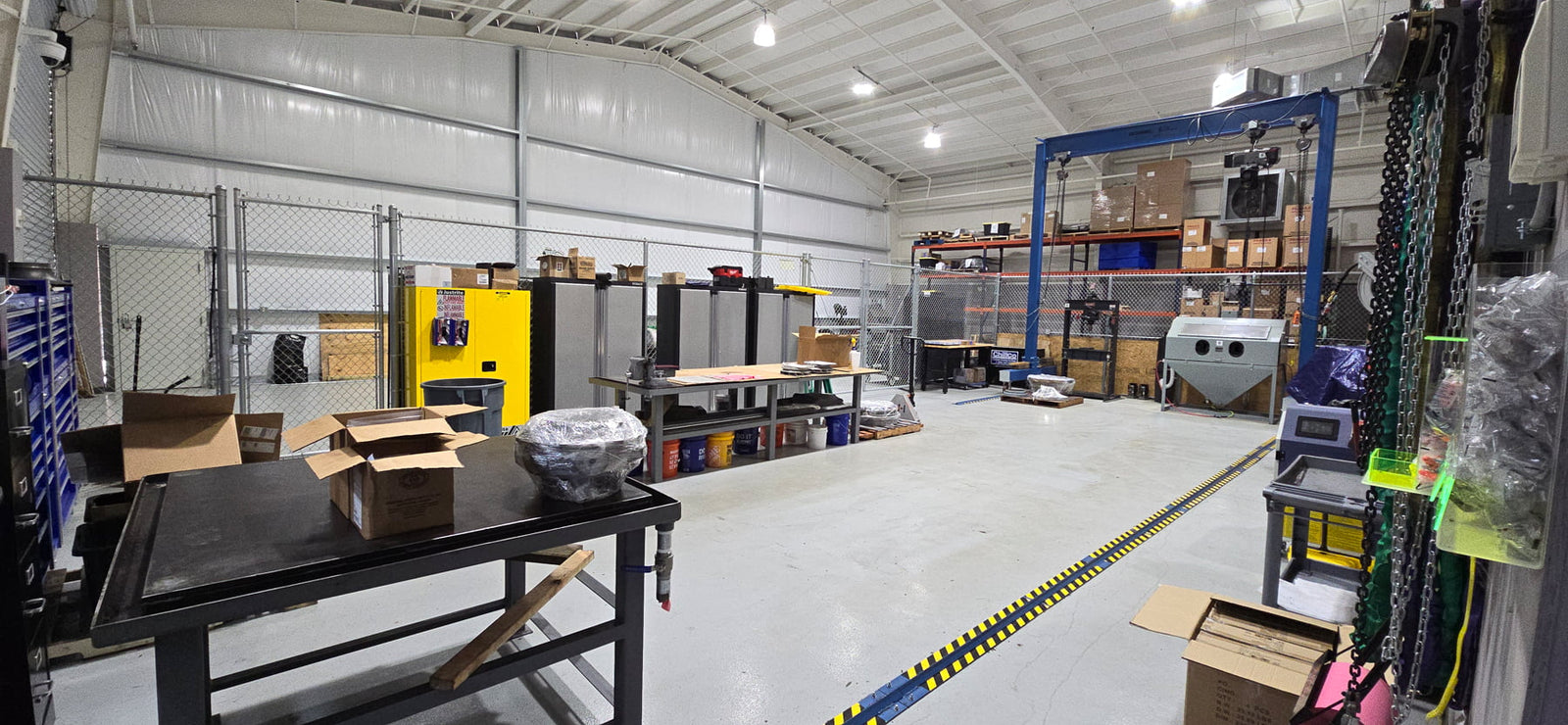

This case study examines the upgrade of lighting in a warehouse environment by adding four 200W UFO High Bay Lights to supplement the existing six 200W Metal Halides. The warehouse, measuring 44×66 square feet with a ceiling height of 25 feet, required enhanced lighting to improve visibility and operational efficiency. The installation of the additional UFO High Bay Lights was strategically planned to ensure optimal light distribution. The results, verified by actual measurements, indicated an average illumination of 90 footcandles (fc), with a maximum of 147 fc and a minimum of 32 fc. Warehouse UFO High Bay Lighting Design Here’s an example of a 3D industrial lighting photometric design developed by our professional lighting engineers. In this example, four 235W UFO High Bay Lights were added to an existing setup of six 200W Metal Halides to achieve the desired illumination in a 44×66 ft warehouse with 22-25 ft ceilings.          3D 44×66 Warehouse UFO High Bay Lights   3D 44×66 Warehouse at 147 Footcandles44×66 Warehouse Lighting Layout Warehouse Dimensions: 44×66Warehouse Ceiling Height: 25 feetFixture Type: 200W LED UFO High BayFixture Count: 4 PCSFixture Certifications: DLC Premium, uL ListedWarehouse Illumination: 90 footcandles (fc), with a maximum of 147 fc and a minimum of 32 fc. Results 44×66 Warehouse LED UFO Lights (Ceiling View) 44×66 Warehouse LED UFO Lights (Ground View) Following the installation of four 235W UFO High Bay Lights in the 44x66ft warehouse with 22-25 ft ceilings, the results exceeded expectations. The client was highly satisfied with the significant improvement in visibility and the uniform distribution of light throughout the warehouse. The lighting engineers utilized advanced 3D photometric analysis to optimize the lighting setup, achieving an average of 90 footcandles, with a peak of 147fc and a minimum of 32fc, verified by actual measurements. The client provided the following feedback: “I just wanted to follow up. We installed the four 200W lights a little over a month ago, and it has worked perfectly. We no longer have trouble seeing, and even the photos for our reports are brightened up.” This enhancement in light quality has greatly improved day-to-day operations, making tasks easier and more efficient. The client praised the expert recommendations and the careful planning involved, highlighting the improved visibility and functionality of the space. The upgrade not only resolved lighting issues but also increased the satisfaction and efficiency of the warehouse operations.

0-10V dimming is a game-changer for anyone looking to create the perfect lighting atmosphere. Whether you're managing a large commercial space or upgrading your home's lighting system, this innovative technology offers flexibility and control that traditional dimming methods simply can't match. Let’s explore what 0-10V dimming is, how it works, and ways to use it. What is 0-10V Dimming? 0-10V dimming is a popular lighting control option—especially for LED lighting—known for its smooth, continuous dimming capabilities. It allows you to easily adjust light levels to suit different spaces, whether you're looking to create a calm, ambient environment or need full brightness for tasks. It’s a reliable and efficient option for those looking to enhance both the functionality and ambiance of their lighting systems. How Does 0-10V Dimming Work? A 0-10V dimmer sends a low-voltage control signal to a light fixture to adjust its brightness based on the voltage received. When the control signal is at 10 volts, the light runs at full brightness. As the voltage drops, the brightness decreases. At 0 volts, the fixture will either dim to its lowest level or turn off completely, depending on the design. This method allows for precise and continuous control over light levels, making it ideal for creating the perfect lighting environment. 0-10V Dimming Technology There are a few technological components that work together to make 0-10V dimming possible. We’ve broken them down below: Dimmable LED Drivers: These are the heart of the system. The driver converts the control signal from the dimmer into the appropriate voltage, adjusting the light output accordingly. 0-10V Dimmers: These wall-mounted devices or controls send the 0-10V signal to the LED driver, allowing you to adjust the brightness smoothly. Wiring: A pair of low-voltage control wires run from the dimmer to the driver, separate from the main power wires, which allows for independent control over dimming without interfering with the power supply. Compatible Fixtures: The light fixtures must be compatible with 0-10V dimming, which typically includes LED fixtures that are designed to accept this type of control signal. Top Benefits of 0-10V Dimming 0-10V dimming offers a range of benefits that make it an excellent choice for both commercial and residential lighting systems, including: Smooth, Precise Control: Allows for continuous dimming from full brightness to low light, creating the perfect lighting atmosphere. Energy Efficiency: Reduces energy consumption by lowering light output when full brightness isn’t required, helping save on electricity costs. Wide Compatibility: Works with a broad range of LED fixtures and dimmers, making it easy to integrate into existing systems. Scalability: Ideal for both small and large-scale lighting setups, whether in homes, offices, or retail environments. Reliability: Known for its dependable performance, 0-10V dimming provides consistent control without complicated setup or maintenance. Why 0-10V Dimming is Preferred Over Other Dimming Systems In general, 0-10V dimming is preferred over other dimming methods because it offers smoother, more precise control, especially for LED lighting, which can sometimes struggle with other types of dimming systems. Its continuous, flicker-free dimming makes it ideal for environments where creating the right lighting atmosphere is important, like offices, retail spaces, and homes.0-10V dimming is also highly reliable and easy to scale, whether you're managing a single room or an entire building. Its compatibility with different fixtures and dimmers makes it more versatile and easier to integrate than some older, more limited dimming technologies. Limitations of 0-10V Dimming While 0-10V dimming has many advantages, there are a few limitations to consider when deciding if it's the right choice for your lighting system, including: Additional Wiring: Requires low-voltage control wiring, which can increase installation costs, especially for retrofits in older buildings. Incomplete Dimming: Some fixtures may not fully turn off and instead dim to a low brightness level, depending on the design. Signal Loss: Over long distances, the control signal can weaken, making it less effective for large-scale installations without careful planning. Compatibility: Not all fixtures and light bulbs are compatible with 0-10V dimming. Ways to Use 0-10V Dimming Because of its versatility, 0-10V dimming is widely used across residential and commercial spaces. We’ve compiled a list of a few common applications to help you decide whether it’s right for you. Office Lighting: In workplaces, adjust brightness throughout the day to reduce eye strain and create a comfortable working environment. Use dimming to balance natural and artificial light effectively. Retail Spaces: Create the perfect ambiance for showcasing products with precise control over lighting levels. Adjust the brightness to highlight key areas or displays while saving energy. Schools: In classrooms, gyms, and auditoriums, 0-10V dimming allows for tailored lighting levels depending on the activity—whether it’s bright lighting for focused learning or softer lighting for presentations and media viewing. Residential Settings: Use 0-10V dimming to control lighting in living rooms, bedrooms, and dining areas, offering the flexibility to set the right mood for any occasion, from bright task lighting to soft, ambient light. Theaters and Auditoriums: Smooth dimming is essential for these spaces, where lighting transitions must be seamless and flicker-free for performances and presentations. Outdoor Lighting: Ideal for parking lots or building exteriors, 0-10V dimming allows you to adjust lighting levels for safety, visibility, and energy efficiency based on time of day or occupancy. Trust ZC LightingWith Your LED Lighting Needs! 0-10V dimming is a flexible and efficient solution for a wide range of lighting needs, from commercial spaces to schools and even residential settings. With its smooth control, energy efficiency, and wide compatibility, it's easy to see why it's a preferred choice for modern lighting systems.Ready to upgrade your lighting? Contact ZC Lighting today to explore our LED lighting solutions and enhance your space.

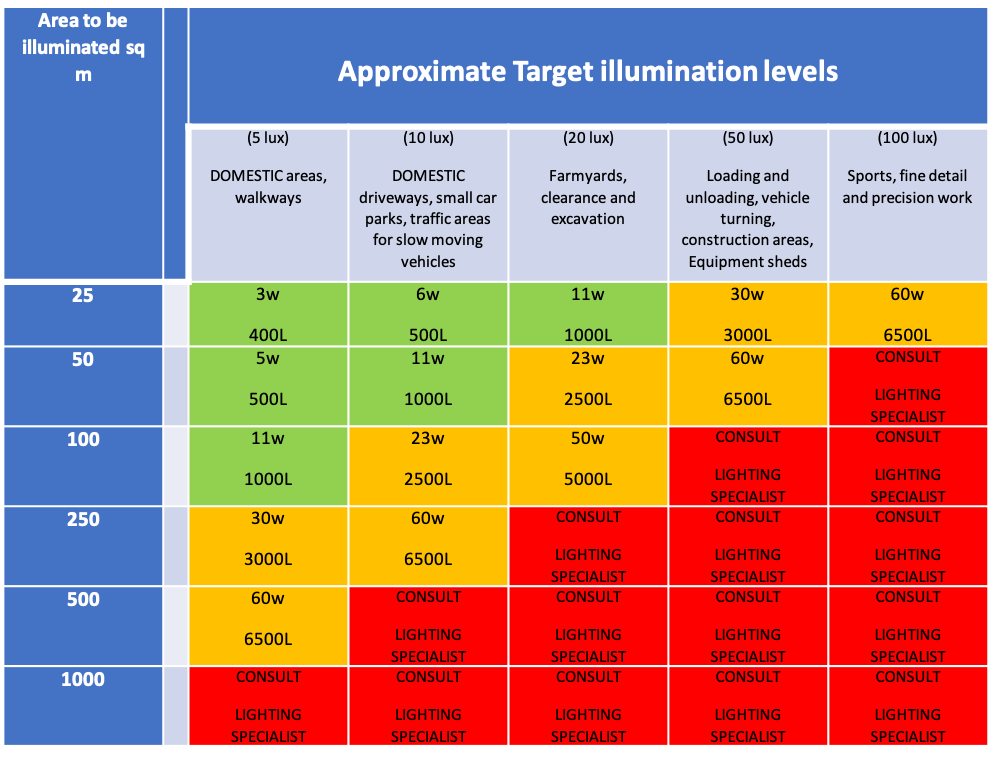

Proper lighting is essential in creating safe, productive, and visually appealing environments across various settings. Whether in offices, schools, retail spaces, or industrial facilities, ensuring the correct lighting levels can enhance functionality, reduce accidents, and improve overall well-being. Additionally, many workplaces must meet specific illumination levels to comply with safety and operational standards, making proper lighting design essential for both functionality and regulatory compliance. This article discusses recommended lighting levels for common and specialized applications. It’s important to note that this article is meant to be an informative guide. We recommend consulting with our professional lighting engineers to perform a photometric analysis for precise results tailored to your unique space. Understanding “Foot-Candles” Lighting levels are measured in “foot-candles,” a standard unit that quantifies the amount of light hitting a surface. The one-foot candle is equivalent to the illumination provided by a single candle from one foot away. This measurement helps professionals evaluate and implement lighting solutions tailored to specific tasks and environments. Horizontal foot-candles refer to light measured on a flat surface, like a desk or floor, while vertical foot-candles measure the light on vertical surfaces, such as walls or objects at eye level. Understanding and adhering to recommended foot-candle levels is crucial for optimizing visibility, meeting safety standards, and ensuring energy-efficient lighting in commercial and industrial applications. In this guide, we will explore recommended lighting levels for various settings to help you choose the best LED lighting solutions for your needs. Basic Lighting Levels This section discusses common lighting recommendations for everyday areas. Proper illumination in spaces such as corridors, restrooms, and lunchrooms ensures safety and comfort for all users. Lighting recommendations for common indoor areas include, Corridors: Horizontal average of 5-foot candles, with a range of 2.5-10-foot candles. Restrooms: Horizontal average of 15-foot candles, with a range of 7.5-30-foot candles. Vanity areas may require higher levels of up to 20 foot-candles. Lunch and Break Rooms: Horizontal average of 10-foot candles, with a range of 5-20 foot candles. Lighting Levels for Commercial Offices In office environments, appropriate lighting contributes to productivity and reduces eye strain. Recommendations for commercial office lighting include: Open Office Areas (Desks): Horizontal average of 40-foot candles, measured at desk height. Conference Rooms (Tables): Horizontal average of 30-foot candles, with a range of 15-60 foot-candles. Private Offices: Horizontal average of 40-foot candles, ensuring adequate visibility for focused tasks. Whiteboards: For reading, 15 foot-candles; for presenting, 30 foot-candles. By tailoring lighting levels to specific tasks, office spaces can achieve a balance between comfort and efficiency. Lighting Levels for School & Educational Facilities Educational spaces require lighting that supports learning and minimizes eye strain for students and educators. Recommendations for educational lighting include, Classrooms (Typical Applications): Horizontal average of 50 foot-candles, measured at desk height, ensuring sufficient illumination for reading and writing. Classrooms (Challenging Applications): Horizontal average of 75 foot-candles for tasks like arts, blueprints, or lab work. Auditoriums (AV and Notes): Horizontal average of 20 foot-candles, with reduced levels for areas requiring minimal glare. Gymnasiums (Competition and Recreation): Horizontal average ranges from 30 to 50 foot-candles, depending on the level of activity and spectator needs. Lighting Levels for Parking Lots Adequate parking lot lighting ensures safety and security for pedestrians and drivers. Recommendations for common parking lot lighting needs include, Covered Parking: Horizontal average of 1.5 foot-candles, with a range of 0.5-2 foot-candles. For enhanced security, consider increasing levels to 3 foot-candles. Uncovered Parking (Suburban): Horizontal average of 1 foot-candle, with a range of 0.5-2 foot-candles. Uncovered Parking (Urban): Horizontal average of 2 foot-candles, with a range of 1-3 foot-candles. Uniformity is key to reducing shadows and enhancing visibility. Please note, that these numbers may vary based on the type of parking lot. Outdoor Lighting Levels Outdoor spaces require effective lighting to ensure visibility, safety, and security during nighttime operations. Key recommendations for outdoor lighting levels include: Walkways and Pathways: Horizontal average of 1-2 foot-candles, ensuring safe navigation for pedestrians. Building Exteriors (Safety): Horizontal average of 5 foot-candles, with a minimum of 1 foot-candle to enhance security. Gas Station Canopies: Horizontal average of 20-foot candles to provide clear visibility for drivers and pedestrians. Sports Fields (Amateur/Community): Horizontal average of 30-50 foot-candles, depending on the level of competition. Industrial Lighting Levels Industrial facilities demand robust lighting solutions to ensure precision, safety, and efficiency. Recommendations for common industrial lighting needs include: Assembly & Inspection (Simple Tasks): Horizontal average of 30-foot candles, with a range of 15-60 foot-candles. Assembly & Inspection (Difficult Tasks): Horizontal average of 50 foot-candles, with a range of 25-100 foot-candles. Manufacturing (Large Components): Horizontal average of 30 candles, supporting visibility for handling sizable parts. Manufacturing (Fine Components): Horizontal average of 100 foot-candles, with a range of 50-200 foot-candles to ensure accuracy in detailed work. By implementing these lighting levels, industrial spaces can achieve optimal performance while adhering to safety standards. Retail Store Lighting Levels Retail environments require dynamic lighting to enhance the shopping experience and highlight merchandise effectively. Recommendations for common retail store lighting needs include: General Retail Areas: Horizontal average of 50 foot-candles, providing ample lighting for product browsing. Perimeter Areas: Horizontal average of 20 foot-candles, with a range of 10-40 foot-candles to accentuate displays. Accent Lighting (Displays): Typically 3-10 times brighter than ambient lighting, ensuring featured products stand out. Grocery Store Lighting Levels Grocery stores need well-distributed and focused lighting to create a comfortable shopping environment while showcasing products. Recommendations for common grocery store lighting applications include, Circulation Areas: Horizontal average of 30 foot-candles, ensuring visibility in walkways. Perimeter Areas: Horizontal average of 20 foot-candles, enhancing visibility for shelf browsing. Product Displays: Horizontal average of 50 foot-candles, highlighting fresh produce and packaged goods. Warehouse Lighting Levels Warehouses require functional lighting to support logistics and operational efficiency. Recommendations for common warehouse lighting applications include, Bulky Items (Large Labels): Horizontal average of 30 foot-candles, ensuring visibility for larger packages. Small Items (Small Labels): Horizontal average of 50 foot-candles, facilitating precise identification. Receiving and Staging Areas: Horizontal average of 20 foot-candles, with a range of 10-40 foot-candles to ensure safe handling and sorting of goods.

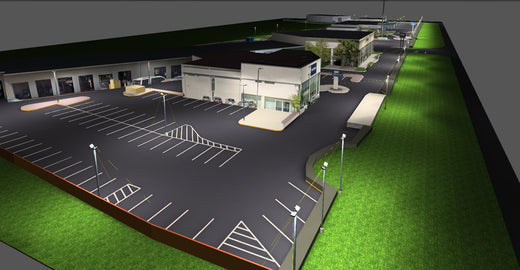

In this case study, we examine an auto dealership parking lot. After a detailed evaluation, our team recommended the installation of 131 LED area lights, specifically chosen to suit the extensive and open layout of the parking lot. These fixtures not only enhance visibility and safety for customers and staff but also maintain energy efficiency, significantly reducing the dealership’s operational costs. Parking Lot Lighting Design Here’s an example of a 3D parking lot lighting photometric design constructed by our professional lighting engineers. In this example, 131 300-watt LED area lights were used for the parking area around an automotive dealership. Other lighting fixtures/accessories used include, 4 120W LED wall packs, 99 slipfitter mounts, 32 adjustable pole mounts, tenon square pole top, double bullhorns, and triple bullhorns. Fixture Type 1: 300W Area Lights (9 PCS)Fixture 1 Count: 131 PCSFixture Type 2: 120W Wall Packs (4 PCS)Fixture 2 Count: 4 PCSAccessories: Double bullhorns, triple bullhorns, tenon square pole top, slip fitter mounts, adjustable pole mountsParking Lot Average Illumination: 15.8 FCParking Lot Max Illumination: 45.3fc Results After the installation of the LED area lights in the auto dealership parking lot, the results were exceptionally favorable. The client was thoroughly pleased with the uniformity of the illumination and the way the lights catered to the expansive layout of the parking lot. The advanced 3D photometric design crafted by our lighting engineers effectively delivered the desired lighting outcomes. The client appreciated the efficient light distribution and expressed gratitude for the professional recommendation and the comprehensive approach taken. The improved visibility and energy efficiency provided by the new LED area lighting setup have significantly enhanced the overall functionality and satisfaction in the dealership operations.

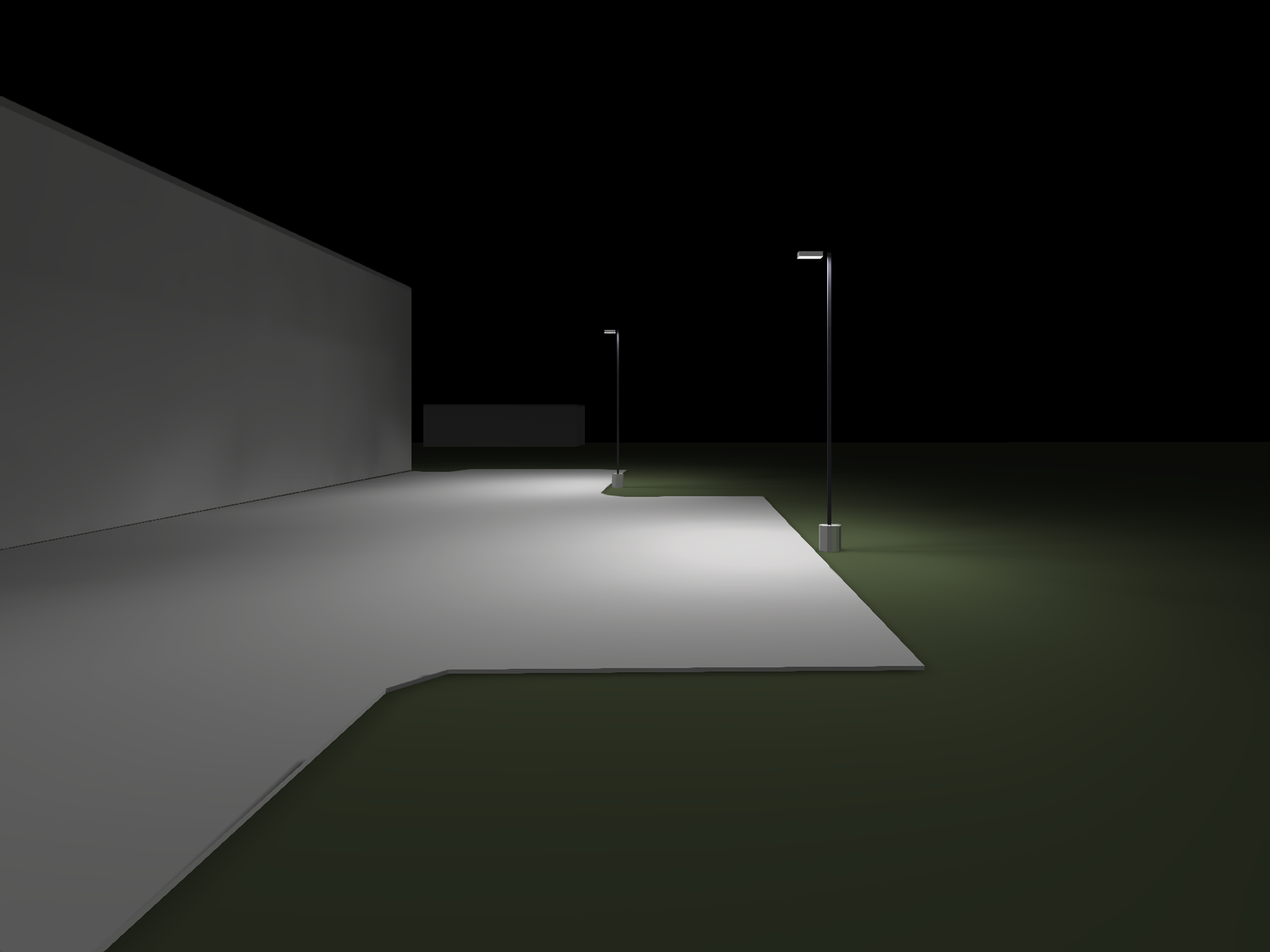

This project involved designing and installing a lighting solution for a parking lot in Ann Arbor, Michigan, to meet specific local ordinance requirements. The goal was to ensure proper illumination for safety and visibility while adhering to the ordinance criteria for average illumination and uniformity ratio. The local ordinance design criteria stipulated the following: Average Illumination: No greater than 3 footcandles Uniformity Ratio: No greater than 10:1 The project needed a lighting design that balanced effective illumination with compliance, ensuring the parking lot was safe, visually appealing, and energy-efficient. Parking Lot Lighting Design Our professional lighting engineers designed a solution that utilized: Six 20-foot, 4-inch square steel poles Six 140W commercial-grade area lights The 140W LED area lights provided excellent lumen output while maintaining energy efficiency. Each light was carefully positioned to maximize coverage and minimize glare and light spillage. 3D North Parking Lot Lighting Design 3D South Parking Lot Lighting Design 3D East Parking Lot Lighting Design 3D West Parking Lot Lighting Design Fixture Type: 150 Watt LED Area LightFixture Count: 6 PCSLight Pole Type: 20ft 4 Inch Square Steel PolesLight Pole Count: 6 PCSFixture Mounting Height: 20 FeetAccessories: SlipfitterFixture Certifications: ULArea Illumination: 2.7 footcandle averageUniformity Ratio: 8:1 Results The implemented design achieved: Average Illumination: 2.7-foot candles Uniformity Ratio: 8:1 These results ensured compliance with the ordinance while providing even and reliable illumination across the parking lot increasing safety and illuminating necessary signage including handicapped parking spaces. LED Parking Lot North Light LED Parking Lot South Light LED Parking Lot East Light LED Parking Lot West Light

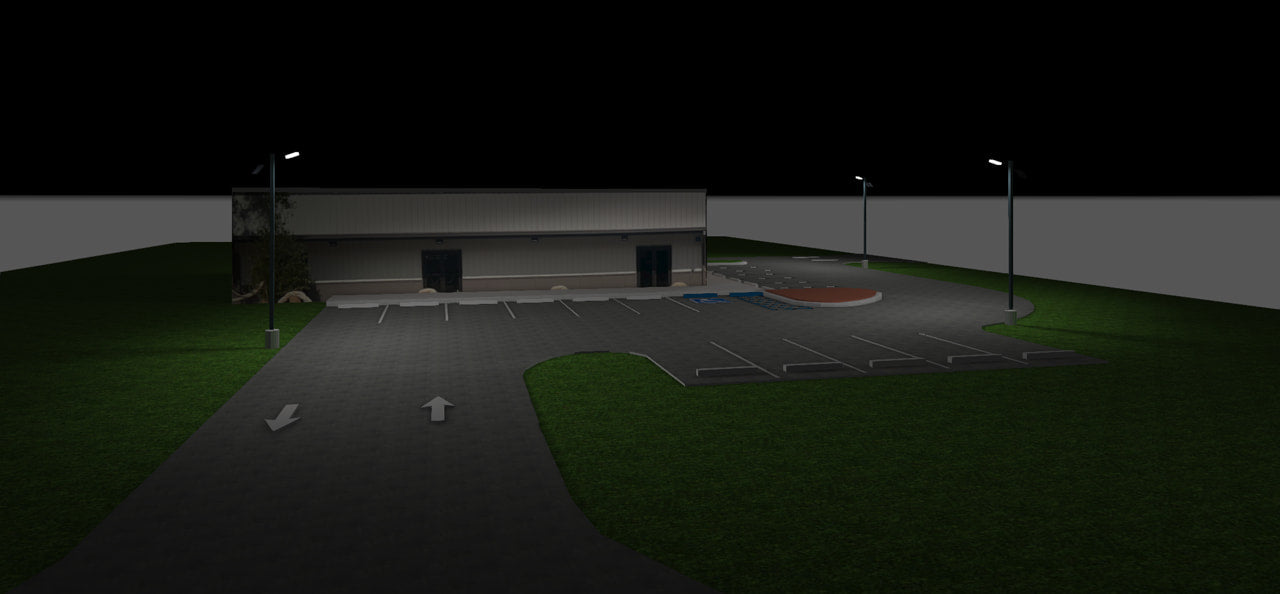

In this case study, we examine a retail store parking lot. After a detailed evaluation, our team recommended the installation of LED area lights, specifically chosen to suit the extensive and open layout of the parking lot. These fixtures enhance visibility and safety for customers and staff and promote sustainability and energy independence, significantly reducing the dealership’s operational costs. Parking Lot Lighting Design Here’s an example of a solar lighting photometric design constructed by our professional lighting engineers. In this example, A customer constructed a corner grocery store with an existing 19-car (12,000 sq ft) parking lot. Installing conventional area lights would have incurred significant additional costs due to the need for underground cable trenching, which would have damaged the existing lot. The estimated costs for trenching and cabling for just three poles were projected to be around $8,000. The scope included three 50W Area Lights which provided an average of 1.61 footcandles; enough light to meet IES recommended illumination for suburban parking lots (1.0 fc). Thus, trenching and trenching damage is avoided. Now the customer will have parking lot lights without disruption to the parking lot and annual power savings, LED Parking Lot Lights  Parking Lot Light Footcandles LED Parking Lot Lighting Layout Results After the installation of the solar-powered LED area lights in the auto dealership parking lot, the results were exceptionally favorable. The client was thoroughly pleased with the uniformity of the illumination and the way the lights catered to the expansive layout of the parking lot. Our lighting engineers' advanced 3D photometric design effectively delivered the desired lighting outcomes. The client appreciated the efficient light distribution and expressed gratitude for the professional recommendation and the comprehensive approach taken. The improved visibility and energy sustainability provided by the new solar parking lot lighting setup has significantly enhanced the overall functionality and satisfaction in the dealership operations.

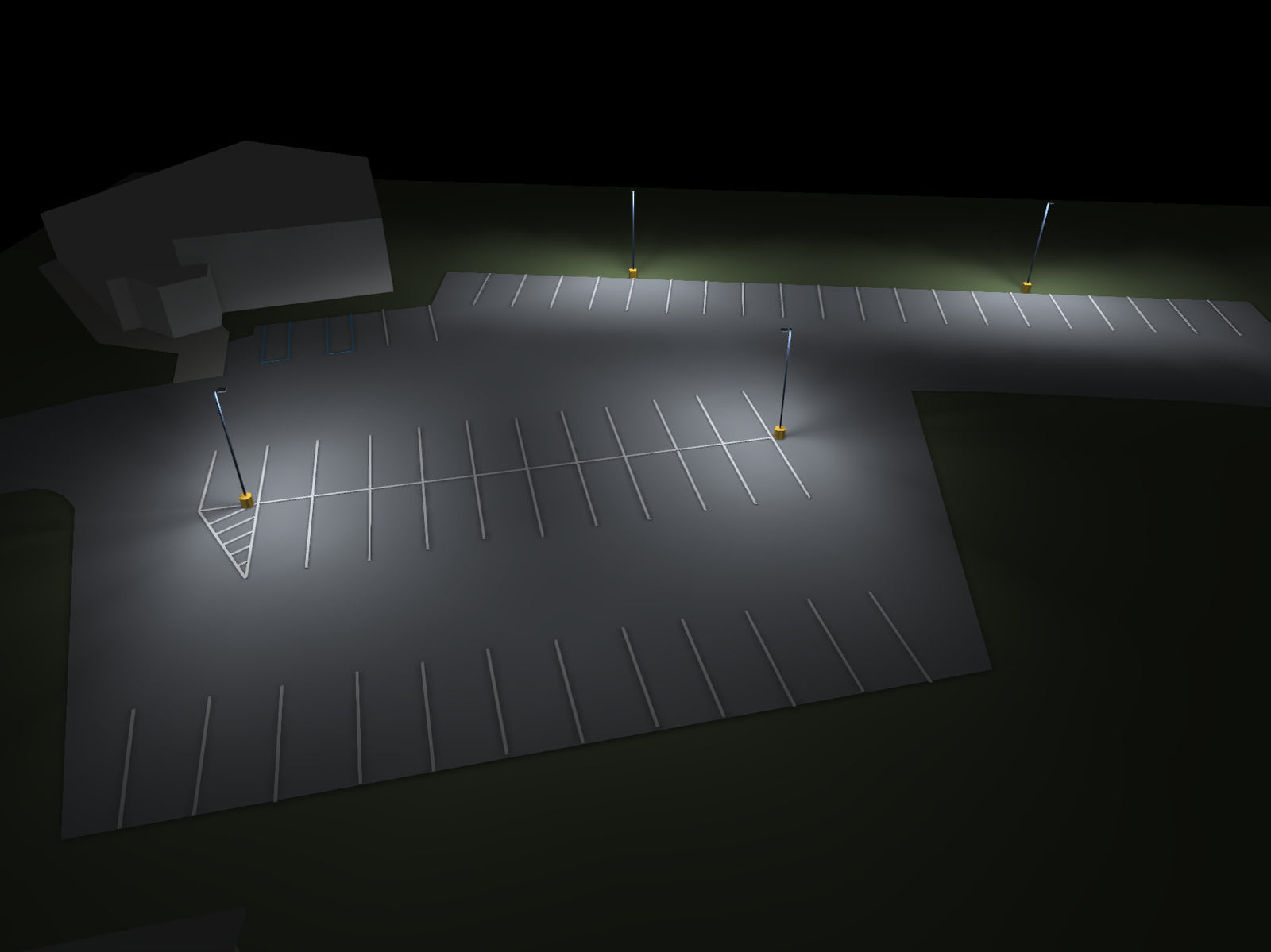

This case study focuses on the lighting design for a 56-car parking lot. The objective was to enhance visibility, ensure safety, and provide energy-efficient lighting. After a detailed evaluation, the following solution was implemented: Lighting Fixtures: Four 200W LED Area Lights, strategically positioned for optimal light distribution. Two fixtures equipped with Type 4 lenses and two with Type 2 lenses to cater to specific directional lighting needs. Poles & Accessories: Four 20-foot 4-inch square poles with a 2-foot base for elevation and stability. Four Photosensors for automatic on/off functionality, reducing energy consumption. Church Parking Lot Lighting Design This parking lot lighting solution was meticulously designed by our professional lighting engineers to achieve optimal performance and efficiency. The design ensured a balanced light distribution across the 56-car parking lot, providing an average illumination of 2.7 footcandles and a maximum illumination of 13.5 footcandles. 3D Church Parking Lot Lighting (Main View) 3D Church Parking Lot Lighting (Side View) 3D Church Parking Lot Lighting (2.7 footcandles) 3D Church Parking Lot Lighting Layout Area Dimensions: 56 Car Parking LotFixture Type 1: 100W LED Barn Lights (4 PCS)Fixture Type 2: 200W Area Lights (4 PCS)Light Pole Type: 20 ft 4-inch square steel poles (4 PCS)Fixture Mounting Height: 20 feetAccessories: Photosensors (4 PCS)Fixture Certifications: UL, DLC (barn lights), UL (Area Lights)Area Illumination: 2.7 footcandles, maximum 13.5 foot candles The use of four 200W LED area lights, strategically equipped with Type 2 and Type 4 lenses, enabled targeted lighting for specific areas while maintaining overall uniformity. Mounted on 20-foot 4-inch square poles with a 2-foot base, the fixtures provided excellent coverage, eliminating dark spots and enhancing safety throughout the space. Additionally, the integration of photosensors allowed for automatic on/off functionality, further improving energy efficiency and reducing operational costs. Results The client was highly satisfied with the lighting setup. The design achieved the desired brightness levels while maintaining energy efficiency, ensuring long-term cost savings and operational reliability. The enhanced visibility has significantly improved the safety and functionality of the parking lot.

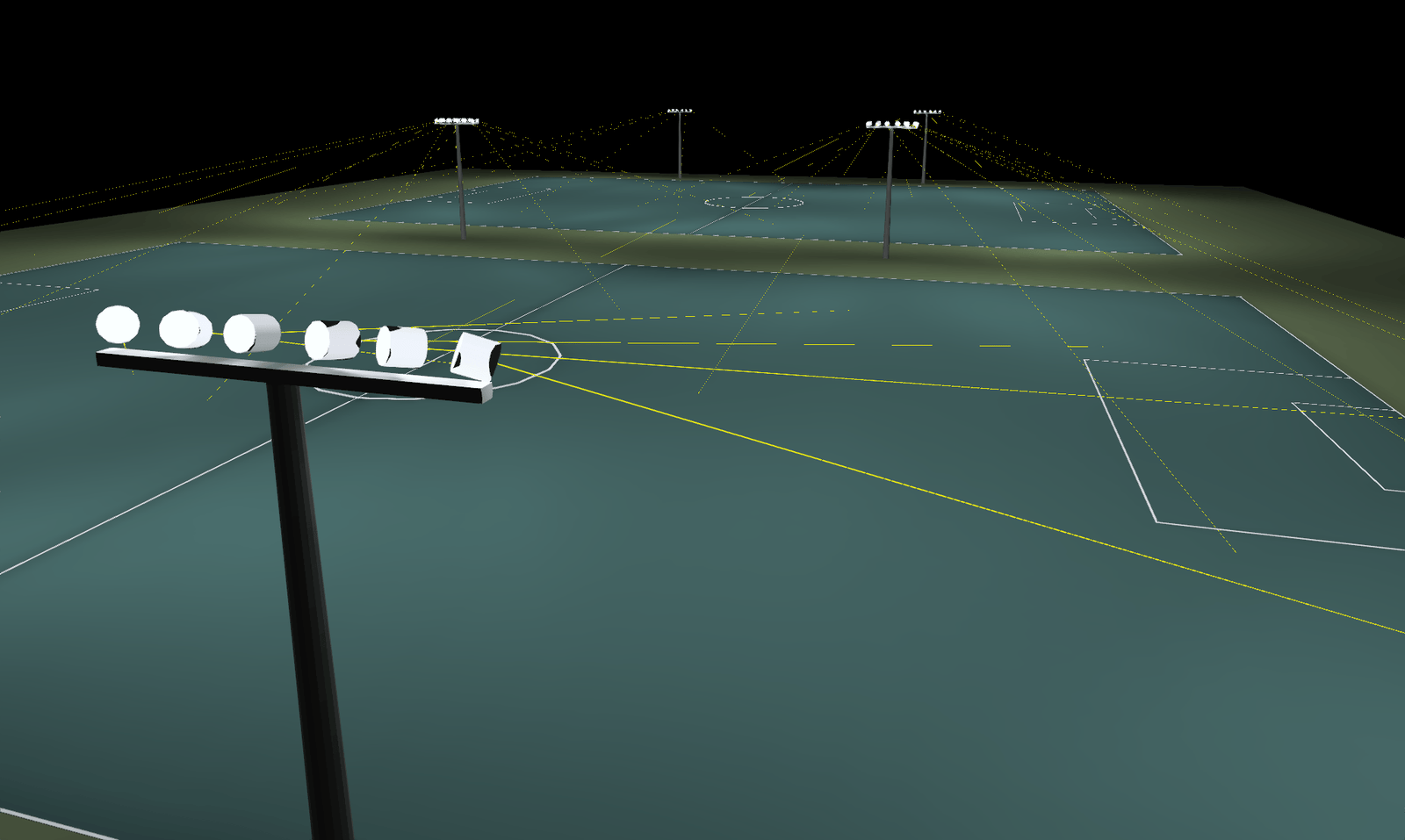

This case study highlights installing specialized lighting for two soccer fields, utilizing high-powered LED sports lights to provide optimal illumination and ensure an excellent playing experience. The project involved the strategic placement of 24 600W sports lights mounted on four 40-foot light poles, with six lights per pole. The two soccer fields, each measuring 215×330 feet, required a robust lighting solution that could deliver consistent and uniform lighting across the entire playing surface. Soccer Field Lighting Design Here’s an example of a 3D soccer field lighting photometric design developed by our professional lighting engineers. In this example, 24 600W sports lights were mounted on four 40-foot light poles, with six lights per pole The design achieved an average illumination of 15 foot-candles (fc) with a uniformity factor of 2.3, ensuring that light was evenly distributed, minimizing shadows, and enhancing visibility for players, referees, and spectators. Outdoor soccer field lighting design Soccer field lighting projected illumination Outdoor soccer field lighting footcandles Outdoor soccer field lighting layout Soccer Field(s) Dimensions: 215 x 330Fixture Type: 600W sports lightsFixture Count: 24 PCSLight Poles Used: 40-foot light polesLight Pole Count: 6 PCSFixture Mounting Height: 40 FTFixture Certifications: IP66 WeatherproofSoccer Field Illumination: 15fc average, 2.3 Uniformity Factor Results This lighting setup demonstrates a thoughtful approach to meeting the demands of outdoor sports environments, with poles strategically placed to optimize coverage while minimizing light spill. By employing high-efficiency 600W sports lights, the project improved the quality of lighting on the fields and underscored a commitment to energy-efficient and sustainable lighting solutions. This design ensures that both soccer fields offer a well-lit and visually comfortable environment, supporting optimal performance and safety for all users.
