How to Select the Correct Pole Height for LED Street Lighting
Introduction
Selecting the right pole height for LED street lighting is a critical decision that directly impacts illumination quality, energy efficiency, and public safety. Unlike traditional lighting sources, LED street lights offer unique advantages like directional light output and adjustable intensity, but these benefits can only be fully realized if paired with an appropriately sized pole. A pole that’s too short may create uneven light distribution, leaving dark spots that increase accident risks. Conversely, an overly tall pole wastes energy by dispersing light beyond the target area and may fail to provide sufficient brightness at ground level. This guide will break down the complex process of pole height selection into actionable steps, covering key influencing factors, scenario-specific recommendations, and expert tips to help you make informed choices for any outdoor lighting project.
Key Factors Influencing LED Street Light Pole Height Selection
1. Road Type and Width
The most fundamental factor in determining pole height is the type and width of the road being illuminated. Residential streets, with narrower widths (typically 6-10 meters), require shorter poles compared to busy highways or arterial roads. For example, a residential road that’s 8 meters wide usually works best with 8-10 meter poles, as this height ensures the LED light’s beam angle covers the entire road surface without overlapping excessively or leaving gaps. On the other hand, arterial roads or highways with widths of 12-20 meters demand taller poles, ranging from 12-15 meters, to achieve uniform coverage across multiple lanes. It’s important to calculate the “light coverage radius” of your LED fixtures—most LED street lights have a beam angle between 120-150 degrees, so pairing this with pole height ensures the light spreads evenly across the road width.
2. LED Fixture Specifications
LED fixture parameters like beam angle, luminous flux, and wattage play a pivotal role in pole height selection. A fixture with a narrow beam angle (e.g., 90 degrees) is better suited for taller poles, as it can focus light downward over a longer distance. In contrast, a wide beam angle (e.g., 150 degrees) is ideal for shorter poles, as it spreads light horizontally to cover broader areas. Luminous flux (measured in lumens) also matters: higher lumen outputs may allow for slightly taller poles, but only if the beam angle is optimized. For instance, a 150W LED fixture with 18,000 lumens and a 120-degree beam angle can effectively serve a 10-meter pole on a 10-meter wide road, while a 200W fixture with the same beam angle might be suitable for a 12-meter pole on a wider road. Always refer to the manufacturer’s “photometric data” for each fixture, which provides detailed maps of light distribution at different heights.
3. Installation Spacing Between Poles
Pole height and installation spacing are interdependent—changing one requires adjusting the other to maintain uniform illumination. The general rule is that pole spacing should be 2.5-3 times the pole height. For example, if you choose 10-meter poles, the spacing between them should be 25-30 meters. This ratio ensures that the light from adjacent poles overlaps slightly, eliminating dark zones. If poles are spaced too far apart relative to their height, you’ll end up with alternating bright and dark spots (known as “strobing” effect). Conversely, spacing poles too close wastes resources and creates over-illumination, which is not only inefficient but also causes light pollution. When planning, use a lighting design software or consult a professional to simulate how different height-spacing combinations will perform.
4. Surrounding Environment and Obstacles
The surrounding environment can’t be overlooked when selecting pole height. Trees, buildings, or other structures may block light if poles are too short. For example, if a road is lined with tall oak trees, you may need to increase the pole height by 1-2 meters to ensure the light clears the tree canopy. Similarly, in urban areas with high-rise buildings, taller poles may be necessary to avoid shadow interference. On the flip side, in areas with low-lying vegetation or open spaces, shorter poles may suffice. Additionally, consider the “glare factor”—tall poles in residential areas should be positioned to avoid shining directly into windows, which can disrupt residents’ sleep. Using shielded LED fixtures alongside appropriate pole heights can mitigate this issue.
Scenario-Based Pole Height Recommendations
1. Residential Streets
Residential streets prioritize safety for pedestrians and low-speed vehicles while minimizing light pollution. Road widths typically range from 6-10 meters, and the desired illumination level is 10-20 lux (a unit of light intensity). For these scenarios, 8-10 meter poles are optimal. Pair them with 80-120W LED fixtures that have a 120-150 degree beam angle. The pole spacing should be 20-30 meters to ensure even coverage. For example, a suburban residential street that’s 7 meters wide would benefit from 8-meter poles spaced 24 meters apart, using 100W LED fixtures with 18,000 lumens. This setup provides enough brightness for residents to walk safely at night without causing glare or wasting energy.
2. Arterial Roads and Highways
Arterial roads and highways handle high-speed traffic (50-100 km/h) and require consistent, high-intensity illumination (20-50 lux) to reduce accident risks. Road widths often exceed 12 meters, with multiple lanes. Here, 12-15 meter poles are recommended, paired with 150-250W LED fixtures that have a 90-120 degree beam angle. Pole spacing should be 30-45 meters to cover the wide road surface. For a 15-meter wide highway with three lanes, 14-meter poles spaced 40 meters apart, using 200W LED fixtures with 24,000 lumens, would provide uniform light distribution across all lanes. The taller poles ensure the light reaches the center of the road, while the narrow beam angle prevents light from spilling into adjacent areas.

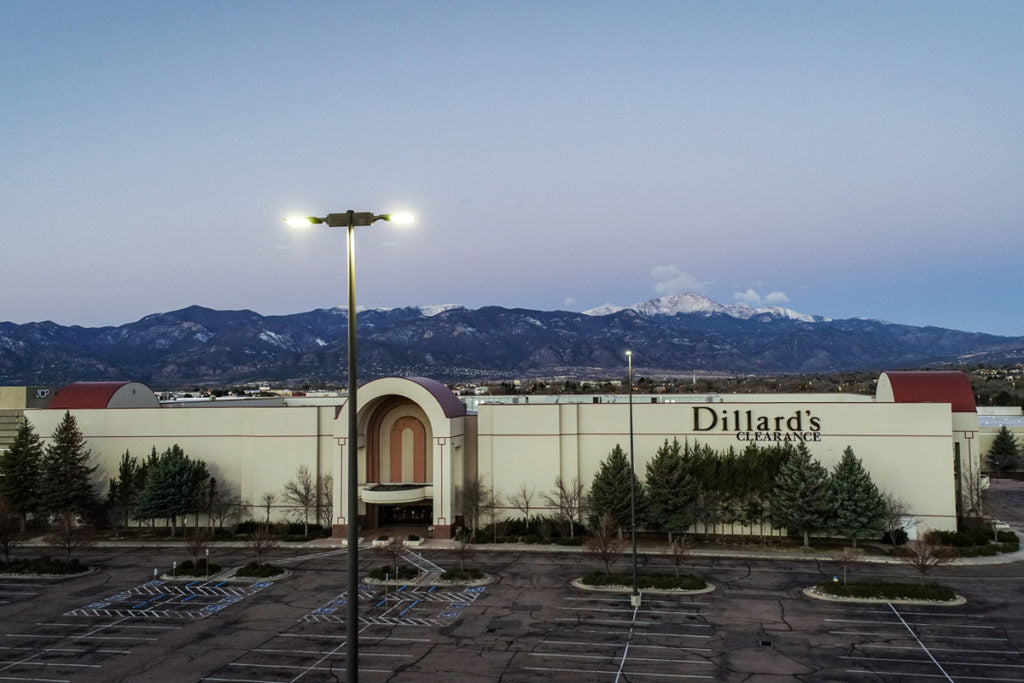

3. Parking Lots and Industrial Areas
Parking lots and industrial areas need wide-area illumination to enhance security and facilitate movement. Parking lots typically require 15-30 lux, while industrial areas may need 30-100 lux depending on the type of work. Pole heights here range from 6-12 meters, with shorter poles (6-8 meters) for small parking lots and taller poles (10-12 meters) for large industrial yards. For a medium-sized parking lot (500 square meters), 8-meter poles spaced 16-20 meters apart, using 100-150W LED fixtures, work well. Industrial areas with heavy machinery may opt for 12-meter poles spaced 30 meters apart, paired with 200-250W fixtures to ensure bright, consistent light for safety and productivity.
4. Parks and Pedestrian Paths
Parks and pedestrian paths prioritize a warm, inviting atmosphere while ensuring safety (5-15 lux). Poles should be shorter to create a cozy ambiance and avoid overwhelming the natural environment. 5-8 meter poles are ideal, with spacing of 12-20 meters. Use 50-80W LED fixtures with a warm white color temperature (2700-3000K) and a 150-degree beam angle to spread light gently over paths and green spaces. For a park trail that’s 3 meters wide, 6-meter poles spaced 15 meters apart, using 60W LED fixtures with 8,000 lumens, would provide soft, even illumination without disrupting wildlife or the park’s aesthetic.
Common Mistakes to Avoid When Selecting Pole Height
1. Ignoring Photometric Data
Many project managers skip reviewing the fixture’s photometric data, relying instead on guesswork. Photometric data provides precise information on how light is distributed at different heights and angles, which is essential for avoiding uneven coverage. Always use this data to simulate the lighting design before installation.
2. Overlooking Local Regulations
Most cities and municipalities have regulations on pole height, light pollution, and installation standards. For example, some residential areas limit pole heights to 10 meters to preserve the neighborhood’s character. Failing to comply with these regulations can result in fines or project delays.
3. Choosing One Size Fits All
Assuming the same pole height works for all areas is a costly mistake. A parking lot and a highway require vastly different heights, so tailor your selection to each specific scenario.
4. Neglecting Future Maintenance
Taller poles require specialized equipment for maintenance (e.g., cherry pickers), which increases long-term costs. Balance the need for height with the practicality of maintenance when making your decision.
Conclusion
Selecting the correct pole height for LED street lighting is a balancing act between road type, fixture specifications, installation spacing, and environmental factors. By understanding these key elements and following scenario-based recommendations, you can optimize illumination quality, enhance safety, and maximize energy efficiency. Avoid common mistakes like ignoring photometric data or overlooking local regulations, and always consult with lighting professionals if you’re unsure. With the right pole height, your LED street lighting system will not only meet functional needs but also contribute to sustainable, well-lit communities for years to come.
