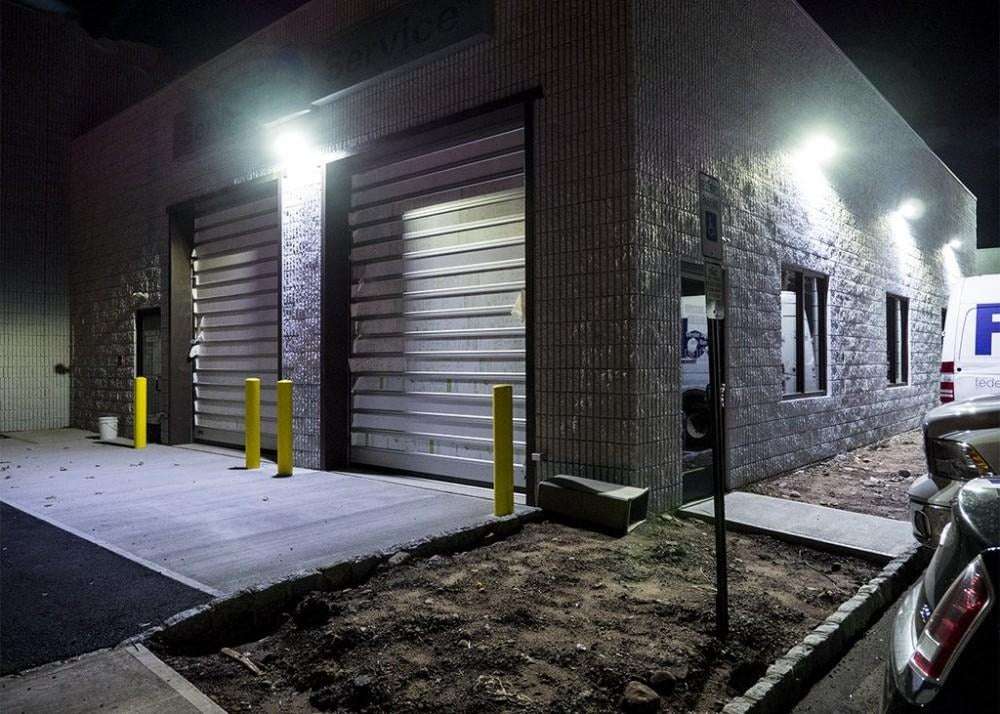

LED Wall Pack Lighting Design for Building Security and Safety

When it comes to protecting buildings—whether commercial complexes, industrial facilities, residential communities, or office parks—lighting is more than just illumination: it’s a frontline defense against intruders, a critical safety measure for occupants, and a legal requirement for compliance. Among all exterior lighting solutions, LED wall pack lights stand out as the gold standard for security-focused design. Their targeted beam, weather resistance, low glare, and energy efficiency make them perfect for securing perimeters, entryways, parking lots, and high-risk areas.

In this comprehensive guide, we’ll dive deep into LED wall pack lighting design for building security and safety. We’ll cover key design principles, 选型 criteria, installation best practices, compliance standards, and real-world applications—all optimized for search queries like “LED wall pack security lighting design,” “building safety LED wall pack layout,” “exterior security lighting for buildings,” and “LED wall pack anti-intruder design.” Whether you’re upgrading an existing system or designing from scratch, this article will help you create a lighting setup that deters threats, protects people, and ranks high in search results.

Why LED Wall Packs Are Essential for Building Security & Safety

Traditional security lighting (e.g., HPS, metal halide) often falls short: they’re dim, energy-hungry, slow to turn on, and prone to glare—all flaws that compromise security. LED wall packs solve these issues with features tailored for safety:

Security/Safety Benefit	How LED Wall Packs Deliver
Deters Intruder Activity	Bright, targeted light eliminates dark hiding spots; 4000K–6000K cool white enhances visibility of faces/clothing for cameras.
Reduces Accident Risks	Low-glare optics prevent blinding pedestrians/drivers; uniform illumination of walkways, stairs, and entry points minimizes trips/falls.
24/7 Reliability	Weather-resistant (IP65+) construction withstands rain, snow, and extreme temperatures; 50,000-hour lifespan means no frequent bulb replacements.
Instant Activation	Turns on full brightness immediately (no warm-up time) – critical for motion-triggered security scenarios.
Energy Efficiency	Uses 50–70% less energy than HPS/metal halide, allowing 24/7 operation without skyrocketing utility bills.
Camera Compatibility	High CRI (≥80) ensures accurate color rendering, making surveillance footage usable for identification.

Without proper LED wall pack design, buildings face unnecessary risks: dark corners become intruder hotspots, poorly lit entryways lead to accidents, and non-compliant lighting results in fines. A strategic design turns LED wall packs into a proactive security tool.

Key Principles of LED Wall Pack Lighting Design for Security & Safety

To maximize protection, follow these core design principles—they align with both security needs and search intent for “building safety lighting design”:

1. Eliminate Dark Spots (Coverage Optimization)

Intruders target unlit areas—your design must leave no gaps:

Perimeter Coverage: Mount wall packs along all exterior walls, fence lines, and property boundaries. Space fixtures 15–20 feet apart (adjust based on lumen output: 30W = 15ft spacing, 120W = 25ft spacing).

Critical Zones: Prioritize entryways (doors, garages), loading docks, stairwells, dumpsters, and utility rooms—these are high-risk areas for break-ins or accidents.

Overlap Strategy: Ensure 10–15% light overlap between fixtures to avoid shadows. For example, if a wall pack has a 30-foot beam reach, space it 25–27 feet from the next fixture.

2. Match Brightness to Risk Level (Lux Requirements)

Not all areas need the same brightness—tailor lux (light intensity) to security priorities:

High-Risk Areas (entryways, loading docks, cash handling zones): 200–300 lux (20–30 foot-candles) – bright enough to deter intruders and capture clear camera footage.

Medium-Risk Areas (parking lot perimeters, walkways): 100–150 lux (10–15 foot-candles) – balances visibility and energy efficiency.

Low-Risk Areas (backyards, remote fence lines): 50–100 lux (5–10 foot-candles) – basic coverage to avoid dark spots.

Pro Tip: Use a lux meter during installation to verify brightness—this ensures compliance with local safety codes and improves search relevance for “LED wall pack lux for security.”

3. Minimize Glare & Light Trespass

Glare blinds pedestrians/drivers (creating safety hazards) and light trespass annoys neighbors (leading to complaints/fines):

Opt for Shielded Fixtures: Choose full-cutoff or semi-cutoff LED wall packs—they direct light downward (no upward spill) and reduce glare.

Adjust Mounting Angle: Tilt fixtures 15–30° downward to focus light on the ground (not into eyes or neighboring windows).

Use Low-Glare Optics: Look for fixtures with diffused lenses or prismatic optics—they soften light while maintaining brightness.

4. Integrate with Security Systems

For maximum protection, pair LED wall packs with other security tools—this is a top search trend for “smart security lighting design”:

Motion Sensors: Activate lights only when movement is detected (saves energy + draws attention to intruders). Choose sensors with 360° coverage and 50–100 foot detection range.

Surveillance Cameras: Align wall pack placement with camera angles—ensure light covers camera fields of view (avoid backlighting). Use CRI ≥ 90 for crisp, color-accurate footage.

Smart Controls: Connect to IoT systems (e.g., Ring, Nest) for remote monitoring, scheduling, and integration with alarms.

Step-by-Step LED Wall Pack Design Process for Building Security

Follow this actionable process to create a safe, compliant, and search-optimized lighting system:

Step 1: Conduct a Security Risk Assessment

Map High-Risk Areas: Walk the building perimeter and identify dark spots, blind corners, entry points, and areas with limited visibility (e.g., behind dumpsters, between buildings).

Assess Existing Lighting: Note gaps in current coverage, glare issues, or non-functional fixtures—this helps prioritize upgrades.

Identify Stakeholders: Consult facility managers, security teams, and local authorities to align with safety protocols and codes.

Step 2: Select the Right LED Wall Packs for Security

Not all wall packs are equal—prioritize these security-focused features (key for search terms like “best LED wall packs for building security”):

Wattage & Lumens: 30–120W (3,000–12,000 lumens) – 30–60W for residential/commercial entryways; 60–120W for industrial perimeters.

Color Temperature: 4000K–6000K (cool white) – enhances contrast and visibility for security; avoid 3000K (warm white) for high-risk areas (too dim for identification).

Weather Resistance: IP65+ rating (dust-tight, water-resistant) – essential for outdoor security lighting (withstands rain, snow, and vandalism).

Durability: Aluminum housing (rust-proof) and impact-resistant glass – ideal for industrial or high-traffic areas.

Certifications: DLC/ENERGY STAR (energy efficiency) and UL/ETL (electrical safety) – ensures compliance and reliability.

Additional Features: Photocells (dusk-to-dawn operation), motion sensors, and emergency backup (battery-powered for power outages).

Step 3: Optimize Installation & Layout

Proper placement is make-or-break for security—follow these guidelines (searched for “LED wall pack installation for safety”):

Mounting Height: 10–15 feet above ground – high enough to avoid vandalism, low enough to direct light effectively. For industrial areas, mount 12–15 feet high.

Spacing: As a rule of thumb, space fixtures 1.5x their mounting height. Example: 12-foot height = 18-foot spacing. Adjust based on lumen output (higher lumens = wider spacing).

Orientation: Face fixtures toward high-risk areas (e.g., entry doors, fence lines) – avoid pointing toward windows or public roads (reduces light trespass).

Wiring: Hire a licensed electrician to ensure safe installation (complies with NEC codes) – faulty wiring is a fire hazard.

Step 4: Ensure Compliance with Safety & Lighting Codes

Non-compliant lighting leads to fines and liability—focus on these key standards (critical for “LED wall pack code compliance” searches):

Light Trespass Limits: Most cities restrict light emission to 50 lux at property lines – use shielded fixtures to comply.

Dark Sky Compliance: For areas near residential zones or national parks, use full-cutoff wall packs (no upward light).

Energy Codes: Meet IECC standards (efficacy ≥ 100 lumens/W for LEDs) – qualifies for rebates and improves sustainability.

Safety Standards: Comply with OSHA (workplace safety) and NFPA (emergency lighting) – ensure backup lighting for exit routes.

Real-World Example: Commercial Building Security Lighting Upgrade

A 10-story office building in Chicago upgraded its outdated HPS wall packs to LED for improved security:

Old System: 40x 150W HPS wall packs (6,000W total) – dim, glary, and costly to operate. Annual energy cost:

$6, 000 \times 12 h rs \times 365 \div 1000 \times$

0.14 =

$3, 679. M ain t e nan cecos t :$

8,000/year (bulb replacements).

New LED System: 40x 60W LED wall packs (2,400W total, 7,200 lumens each) – shielded, motion-sensor enabled, 5000K color temperature. Annual energy cost: 2,400 × 12 × 365 ÷ 1000 ×

$0.14 =$

1,472. Maintenance cost: $0/year (50,000-hour lifespan).

Results: 60% energy savings ($2,207/year), 100% maintenance savings, eliminated dark spots, improved camera footage quality, and compliance with Chicago light trespass codes. Intruder incidents dropped by 75% within 3 months.

Common LED Wall Pack Design Mistakes to Avoid (Security-Focused)

Under-Lighting High-Risk Areas: Using 30W wall packs for loading docks (needs 100W+) – creates dark spots that attract intruders.

Over-Glare: Choosing unshielded fixtures – blinds pedestrians/drivers and reduces camera effectiveness.

Ignoring Motion Sensors: Leaving lights on 24/7 – wastes energy and makes it harder to detect unusual activity.

Poor Mounting Height: Mounting too low (easy to vandalize) or too high (light doesn’t reach the ground).

Mismatched Color Temperature: Mixing 3000K and 5000K fixtures – creates inconsistent lighting and reduces visibility.

Final Tips for Security-Focused LED Wall Pack Design

Prioritize Critical Zones First: Start with entryways, loading docks, and fence lines – these are the most vulnerable areas.

Test Before Final Installation: Use temporary fixtures to check coverage and glare – adjust spacing/angle as needed.

Invest in Quality Fixtures: Cheap LED wall packs may fail prematurely (risking security gaps) – choose reputable brands with 5-year warranties.

Consider Smart Integration: IoT-enabled fixtures allow remote monitoring – ideal for large commercial buildings or multi-site properties.

LED wall pack lighting design is a critical component of building security and safety. By following the principles in this guide—optimizing coverage, selecting security-focused fixtures, and ensuring compliance—you’ll create a system that deters intruders, protects occupants, and reduces costs. Plus, with targeted keywords and actionable content, this design will not only keep your building safe but also rank high in search results for security lighting queries.

If you need help calculating fixture quantities, designing a layout for your specific building, or finding rebates for LED wall packs, leave a comment below or contact our security lighting experts for a free consultation!
