Name: LED Stadium Light FL18
Brand: ZCLEDS
Availability: InStock

Pure aluminum housing + fin-type heat sink for optimal thermal management.

Metallic industrial fan on a white background

Metallic folding chair on a white background

White outdoor floodlight with textured surface on a white background

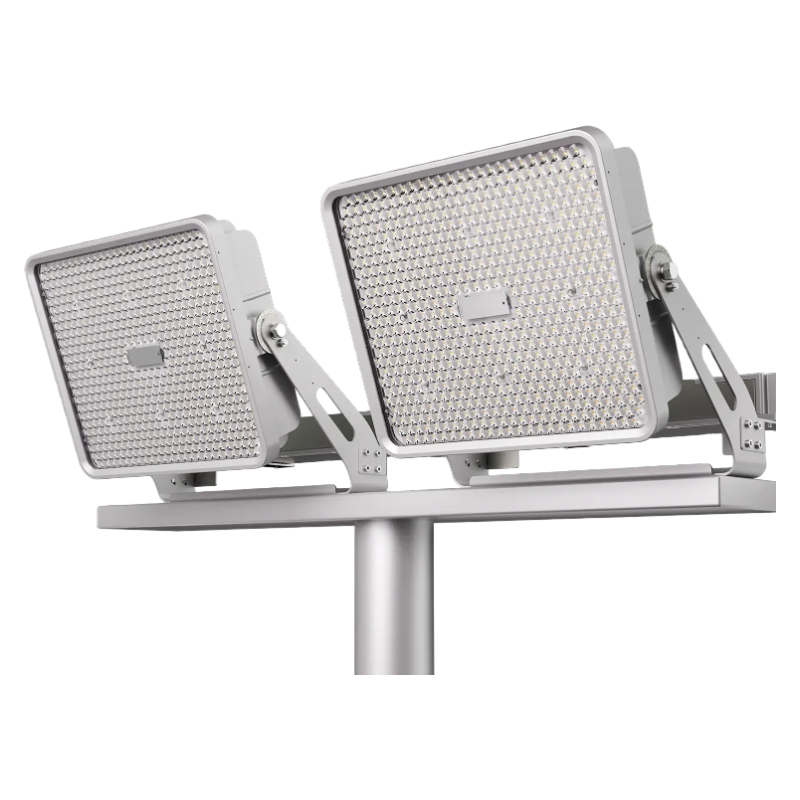

Two outdoor floodlights on a white background

Four computer cooling fans with heat sinks on a white background

Close-up of a metal caliper with a detailed scale

Choose Shape and Size: Browse our shape and size options and select the best fit for your design.

Confirm Order: Approve the mockup and order details, and we will begin production.

Fast Production: Efficient production process ensures your order is completed in a short time.

Global Shipping: We support global shipping to ensure your products reach you quickly.

[{"id":47100767764718,"title":"600W","option1":"600W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 600W","public_title":"600W","options":["600W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767797486,"title":"800W","option1":"800W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 800W","public_title":"800W","options":["800W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767830254,"title":"1000W","option1":"1000W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 1000W","public_title":"1000W","options":["1000W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767863022,"title":"1200W","option1":"1200W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 1200W","public_title":"1200W","options":["1200W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767895790,"title":"1500W","option1":"1500W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 1500W","public_title":"1500W","options":["1500W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767928558,"title":"1650W","option1":"1650W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 1650W","public_title":"1650W","options":["1650W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47100767961326,"title":"1800W","option1":"1800W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light FL18 - 1800W","public_title":"1800W","options":["1800W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

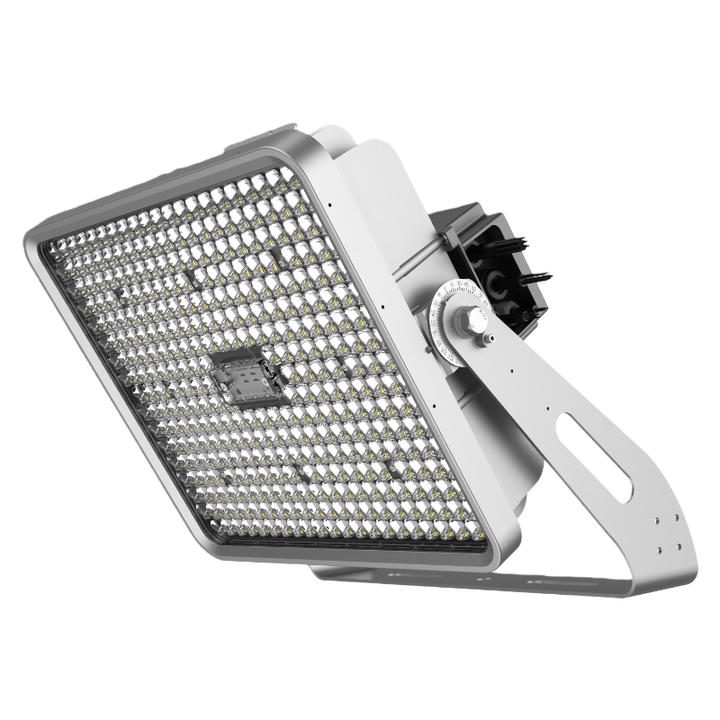

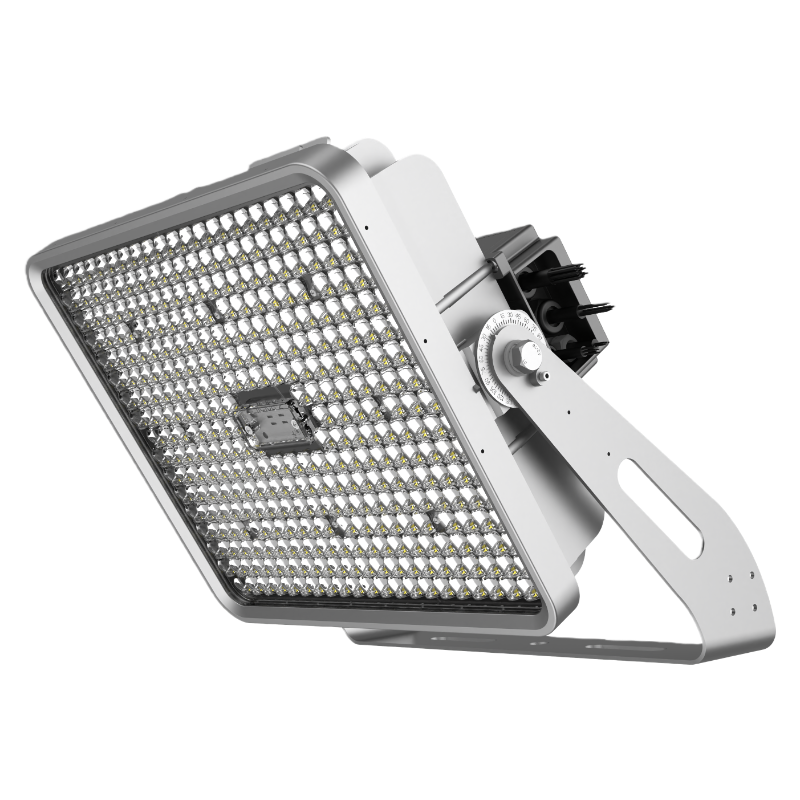

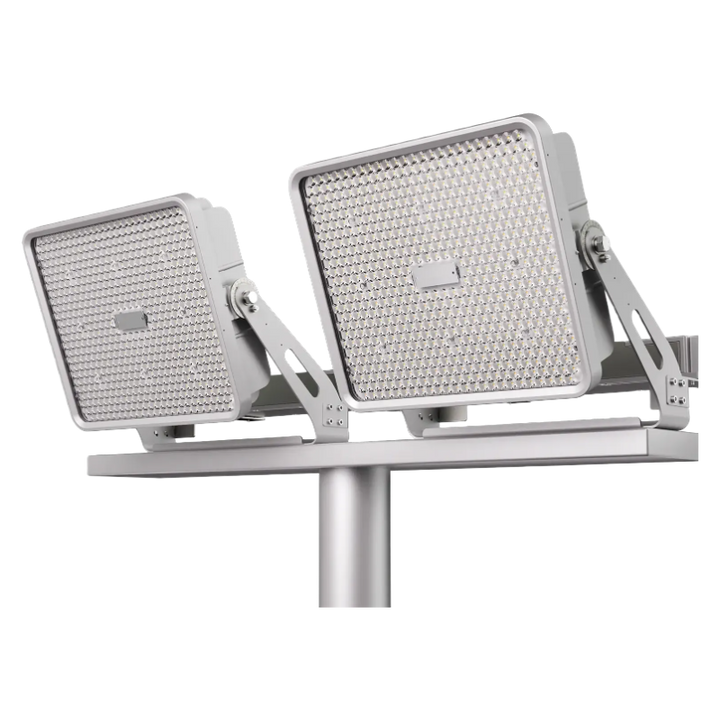

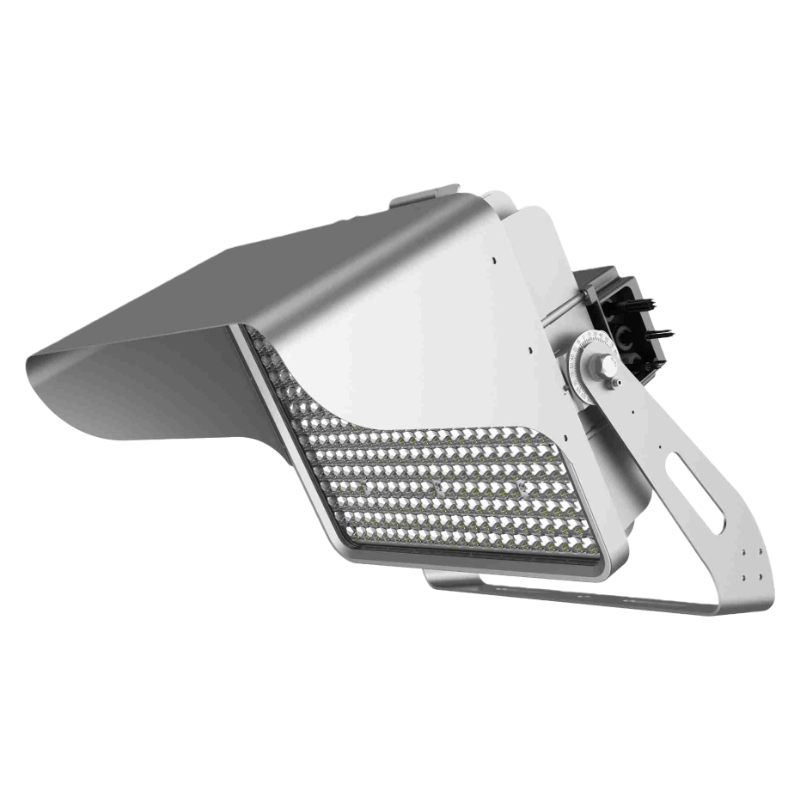

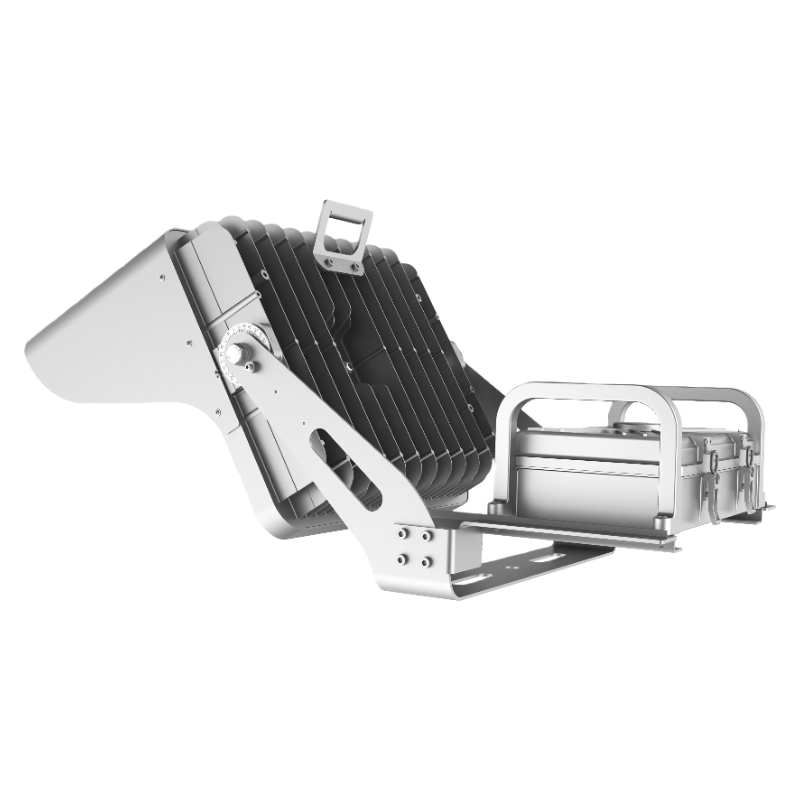

The ZC Lighting FL18 LED Stadium Light is a high-performance outdoor floodlight designed for professional sports lighting and large-scale outdoor applications.

With superior brightness up to 180lm/W, precise optical control, and IP66-rated durability, FL18 ensures excellent visibility and uniform illumination for stadiums, arenas, airports, and ports.

Key Features

Feature	Description
💡 High Luminous Efficiency	Up to 180 lm/W, ensuring powerful brightness with energy savings.
⚙️ Modular Design	Easy installation, flexible power configuration from 600W–1800W.

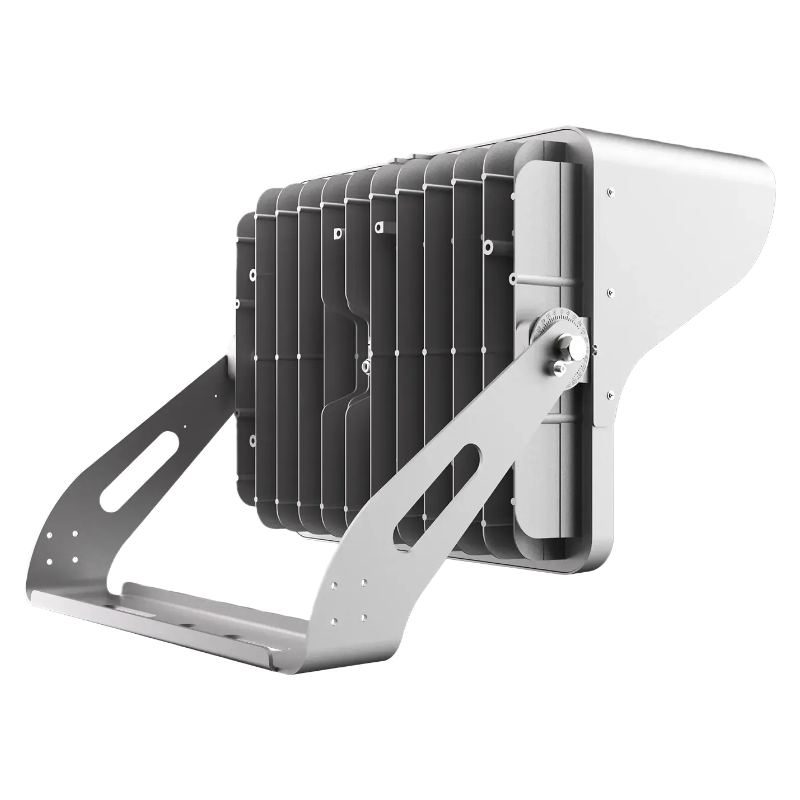

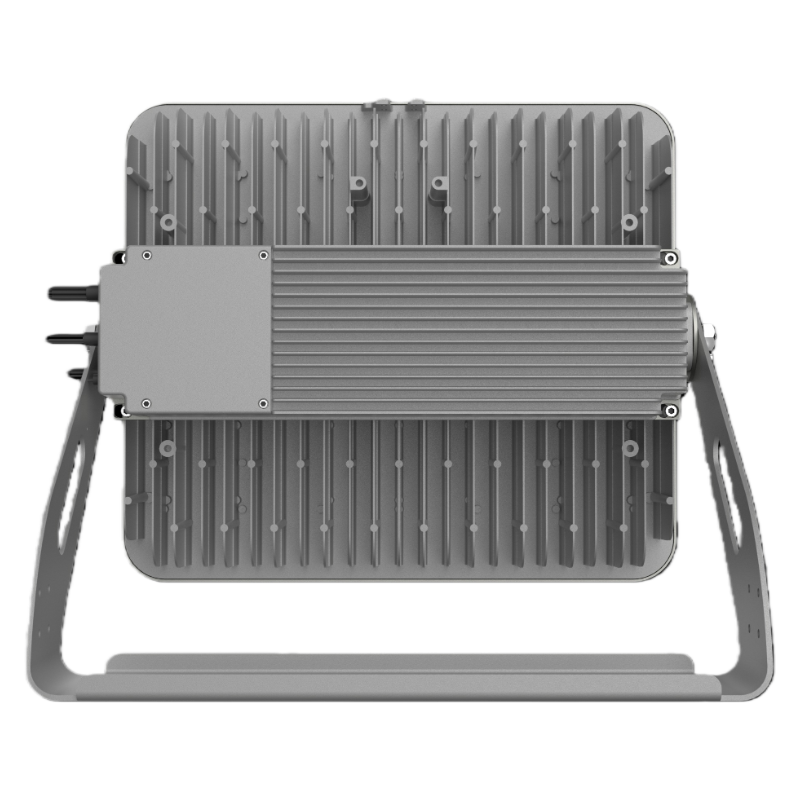

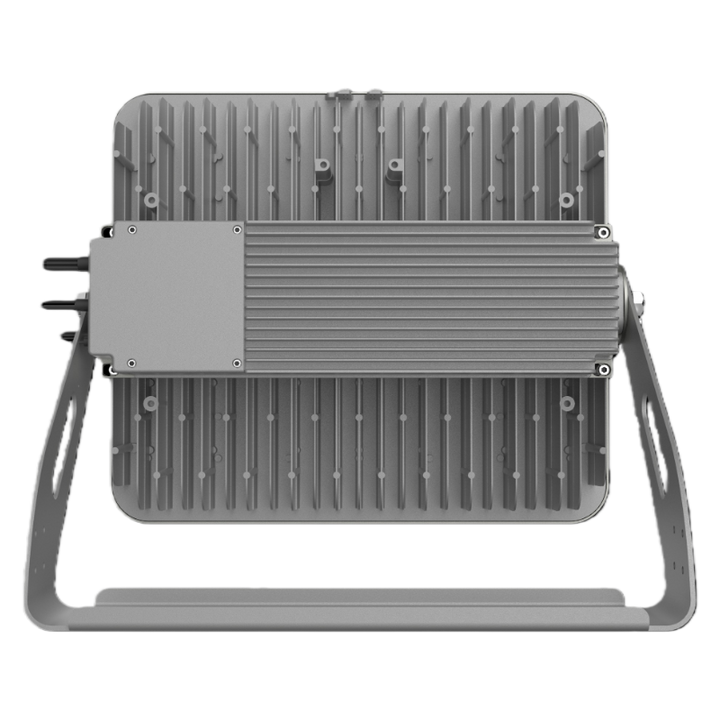

🧊 Excellent Heat Dissipation	Pure aluminum housing + fin-type heat sink for optimal thermal management.
🌧️ IP66 Waterproof & IK10 Impact Resistance	Works stably under rain, dust, and harsh outdoor conditions.
🎯 Multiple Beam Angles	20° , 10° , 15° , NB-P60 optional lens options for precise lighting distribution.
🌍 Wide Voltage Input	AC100–277V, optional 347V/480V for global markets.
🔌 Smart Control Optional	Compatible with DALI / 0-10V / DMX systems for intelligent lighting control.

📐 Product Specifications

Parameter	FL18-600W	FL18-800W	FL18-1000W	FL18-1200W	FL18-1500W	FL18-1650W	FL18-1800W
Power (W)	600W	800W	1000W	1200W	1500W	1650W	1800W
Input Voltage	AC100-277Vac / 277-480V
Luminous Efficacy	178 lm/W	175 lm/W	165 lm/W	155 lm/W	152 lm/W	150 lm/W	145 lm/W
Luminous Flux	106,800 lm	140,000 lm	165,000 lm	186,000 lm	288,000 lm	247,500 lm	261,000 lm
Beam Angle	20° , 10° , 15° , NB-P60 optional
CCT	3000K / 4000K / 5000K / 5700K / 6500K
CRI	70 / 80 / 90 (TLCI90 optional)
SDCM	≤6
Power Factor	≥0.95
THD	<15% (@480Vac/60Hz, 25°C, full load)
Percent Flicker	<1%

⚙️Machinery & Materials

Parameter	FL18-600W	FL18-800W	FL18-1000W	FL18-1200W	FL18-1500W	FL18-1650W	FL18-1800W
Structure Material	ADC12 die-cast aluminum
Surface Finish	Powder coated (Gray)
Lens	PC Lens + Tempered Glass
Bracket	Die-cast U-bracket with reinforcement ribs

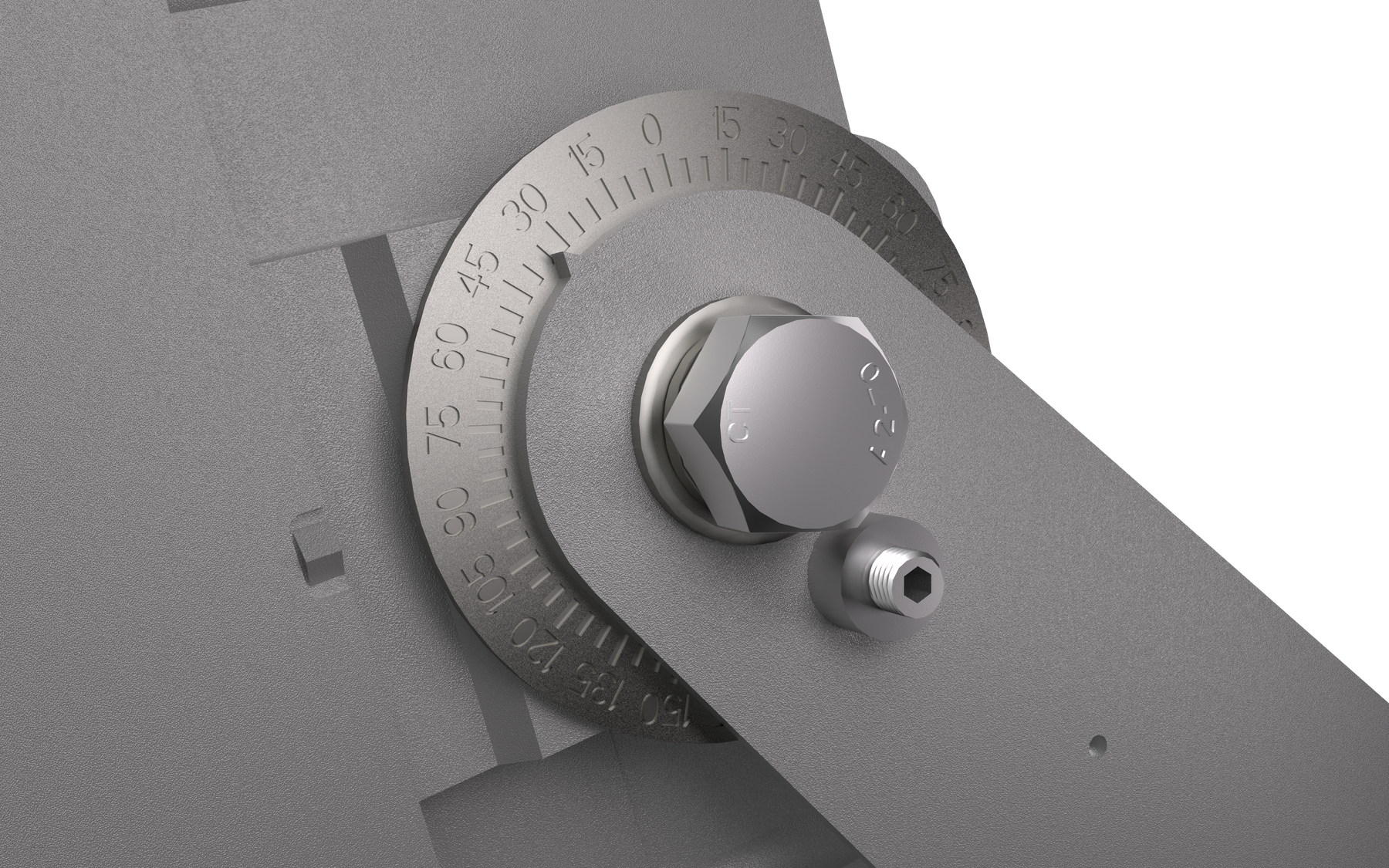

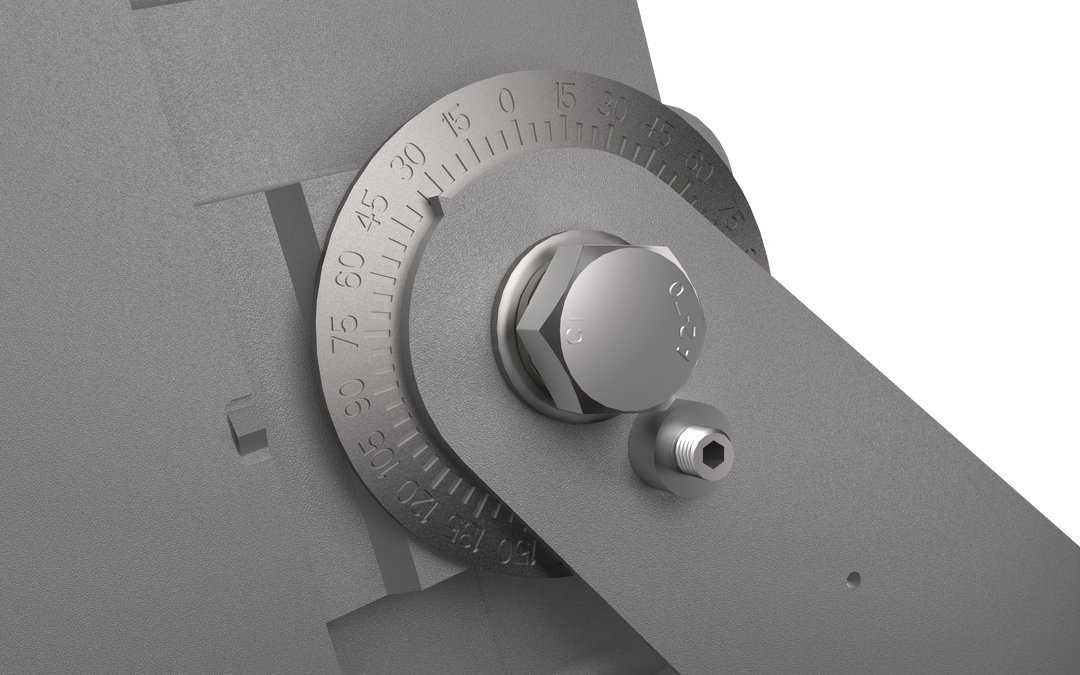

Aiming	Aiming 360° rotation; 5° scale

🔒Protection & Reliability

Parameter	FL18-600W	FL18-800W	FL18-1000W	FL18-1200W	FL18-1500W	FL18-1650W	FL18-1800W
IP Rating	IP66
IK Rating	IK08, IK10 optional
Protection Class	Class I
Operating Temperature	-40°C ~ +50°C (-40°F ~ +122°F)
Lifetime	50,000 hours (L70)
Warranty	5 years
Surge Protection	10kV, 20Kv optional
EPA(ft²）	0.259

🏆Control & Certification

Parameter	FL18-600W	FL18-800W	FL18-1000W	FL18-1200W	FL18-1500W	FL18-1650W	FL18-1800W
Intelligent Control	0–10V, DALI, DMX512, RGB/RGBW
Certifications	CE, RoHS, ENEC

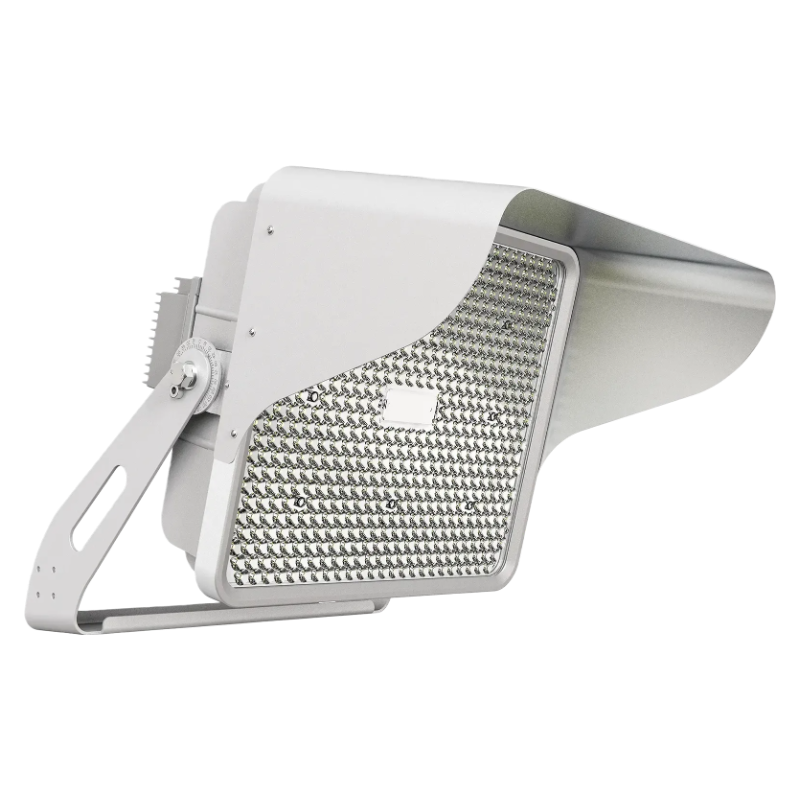

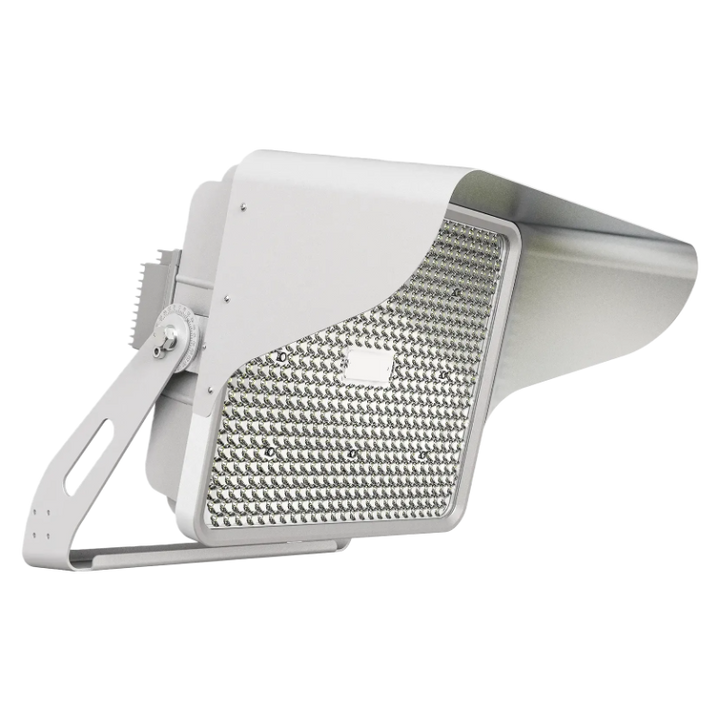

Accessories	Visor, Laser Aimer, Safely Handle

🏟️Application Areas

⚽ Football & Soccer Stadiums
🏀 Basketball & Tennis Courts
🏎️ Race Tracks & Airport Aprons
🚢 Ports, Docks & Container Yards
🏗️ Outdoor Industrial Sites
🏫 School Playgrounds & Training Fields

Custom Lighting DESIGN

Ensure your project is up to local code and meets required light levels with custom layouts created by the ZC Lighting design team.

Host Higher-Level Games + Tournaments

Meet higher league requirements with proper lighting levels.

10+ Years Led Lighting Experiences

Successful Co-Branding Partnership Cases and Continuous Technologically Advanced Solutions

Are You Struggling With These Typical Light Problems?

❓Faced reduced lifespan due to poor heat dissipation?

Our lights feature a streamlined shell made of high-purity aluminum, ensuring efficient cooling and extended service life.

❓Worried about them interfering with other equipment?

Our smart control system offers remote monitoring and automatic adjustments, enhancing management efficiency.

❓Noticed luminous decay over time with them?

Our lights use high-efficiency LEDs to delay light decay, maintaining optimal illumination.

How can ZC Lighting customize your LED lighting solutions?

Power & CCT

Choose from various power levels

to meet your lighting needs.

Design Options

Various colors and materials to suit

different environments and needs.

Smart Control

Smart control systems for efficient

remote management.

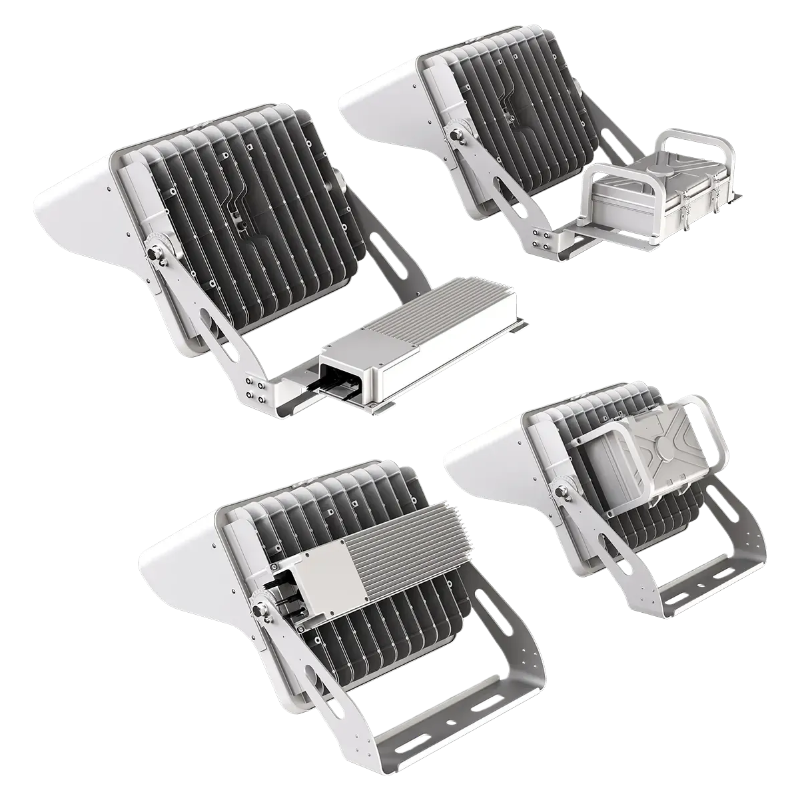

Versatile Mounting

Various installation methods to suit different environmental needs.

Protective Cooling

High protection and effective cooling design for durability.

Branding & Packaging

Custom branding and packaging to enhance your image.

Certifications

Products are subject to multiple technical certifications and tests such as CE, BIS and ISO 9001 every year according to customer requirements, ensuring compliance with international safety, quality, and efficiency standards.
