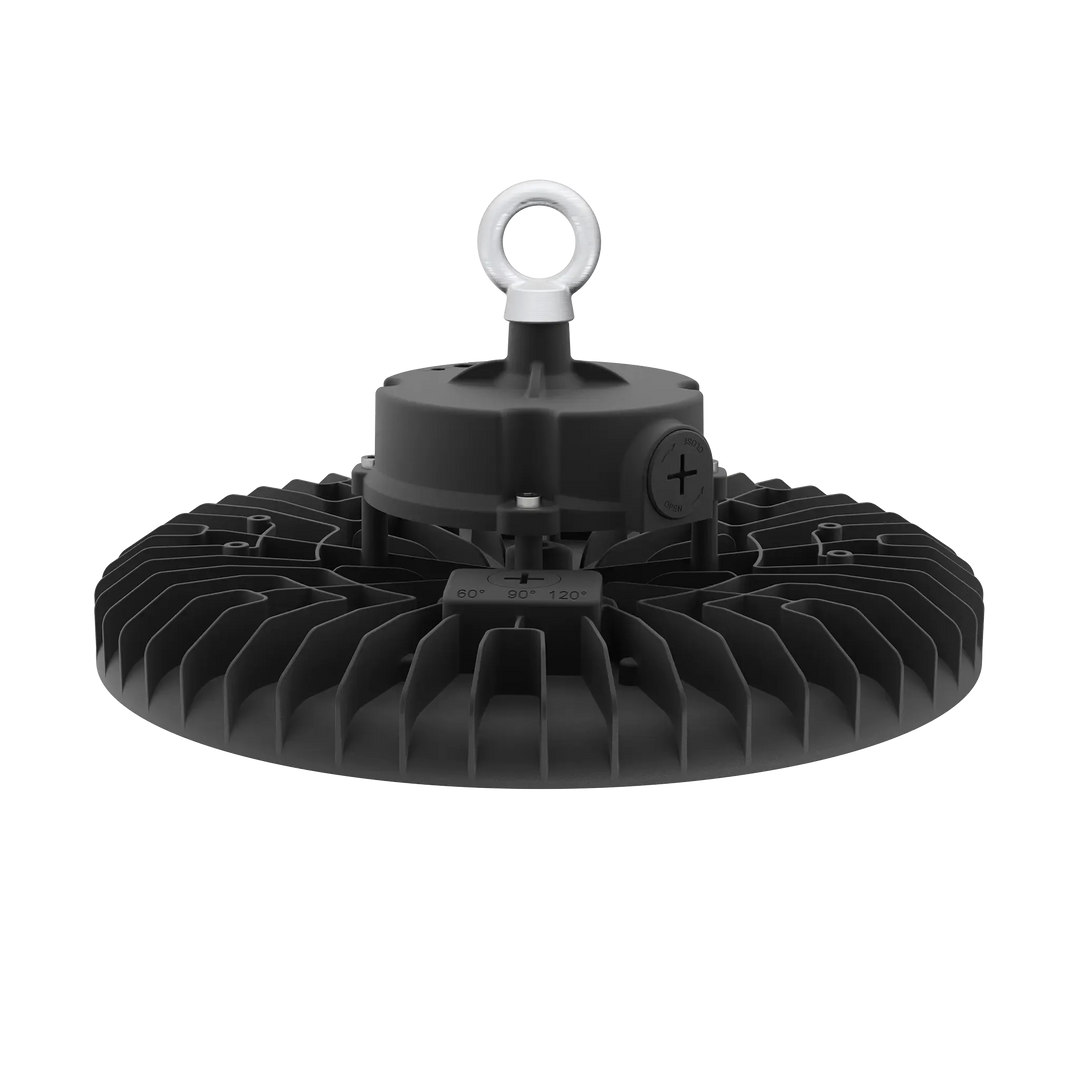

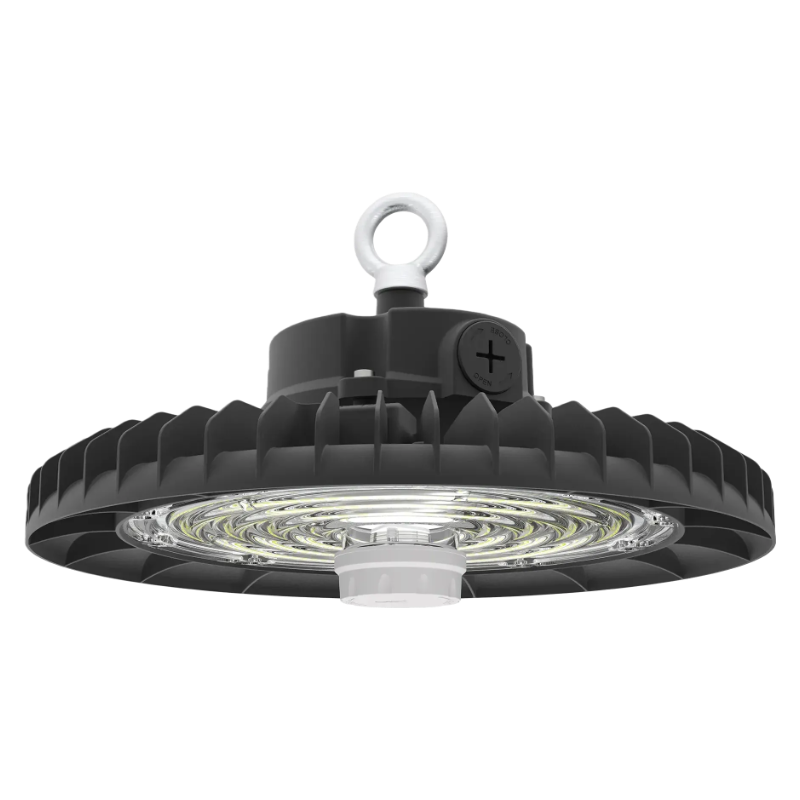

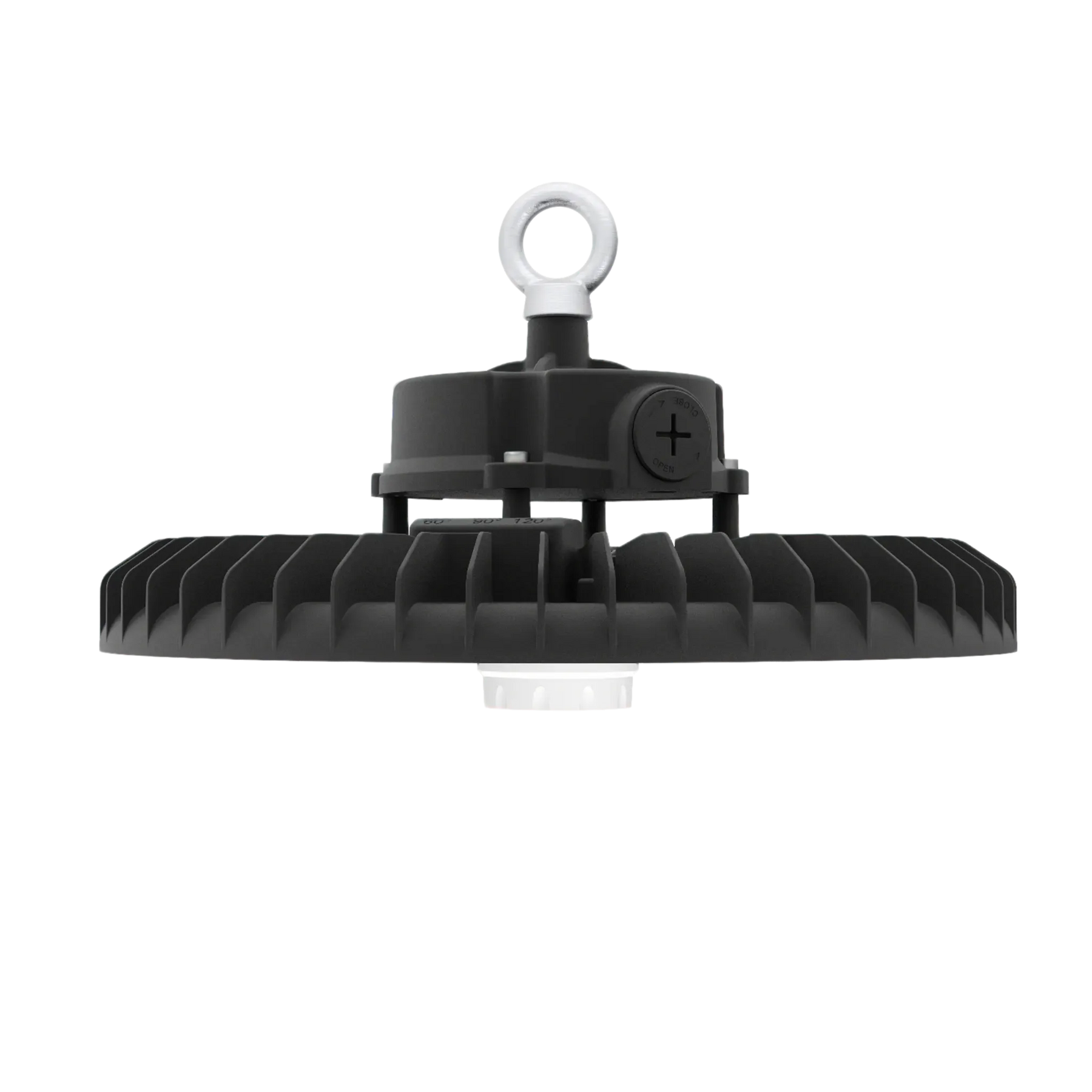

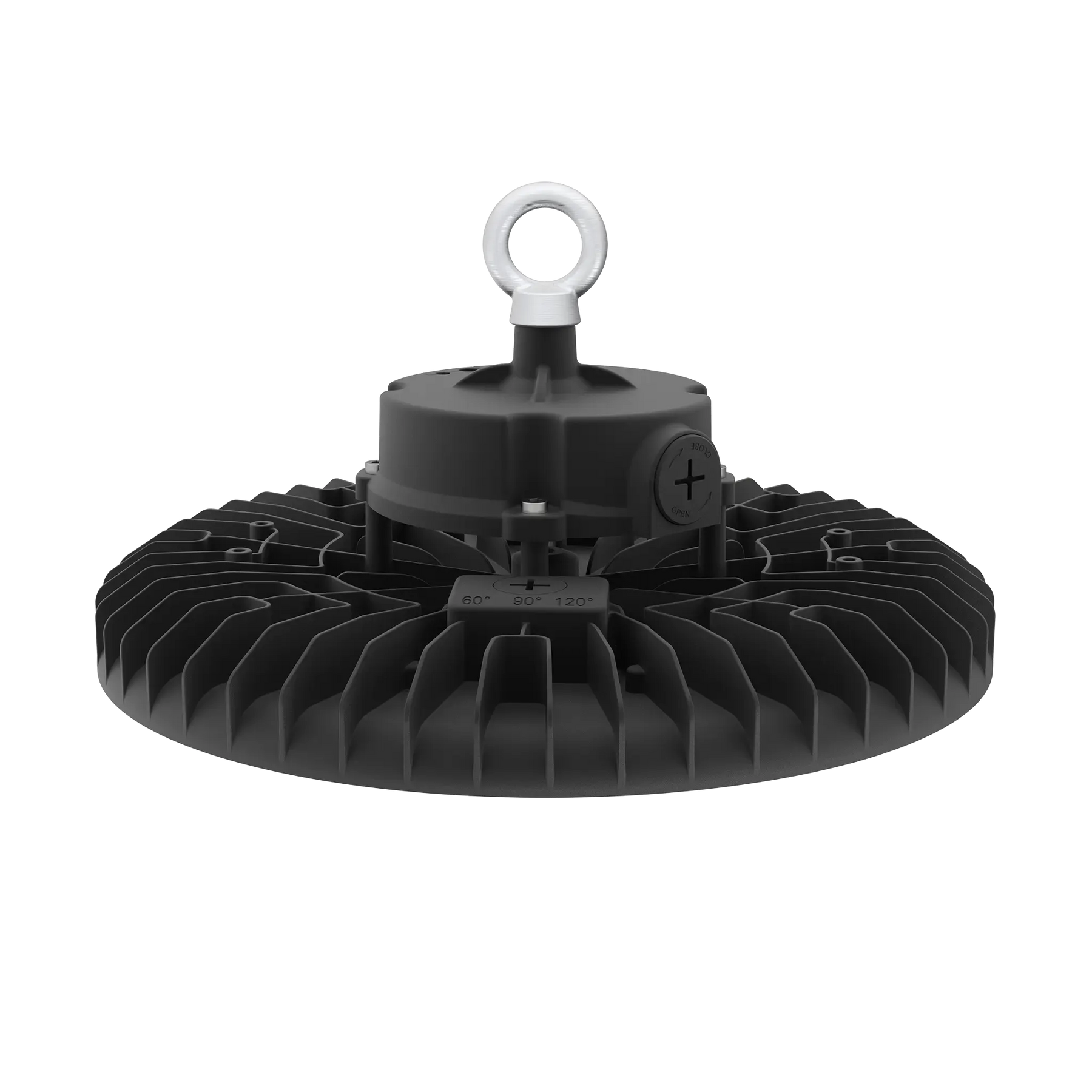

The ZC Lighting HB15 LED UFO High Bay Light is designed for industrial-grade lighting environments such as warehouses, factories, and workshops.
Featuring up to 170lm/W luminous efficacy, IP65 waterproof protection, and robust thermal design, HB15 ensures maximum energy savings, stable brightness, and long operational lifespan.
| Feature | Description |
|---|---|
| 💡 Ultra-High Luminous Efficiency (Up to 170lm/W) | Provides maximum light output with minimal energy consumption. |
| 🧱 Durable Aluminum Alloy Housing | Enhances structural strength and heat management. |
| 🌈 Beam Angles ( 90°) | Adjustable optics for different application needs. |
| ⚙️ Smart Control Support | DALI / 0–10V dimming / motion sensor compatibility. |
| 🔌 Wide Voltage Range (AC100–277V) | Stable performance for various power systems. |
| 🌡️ Wide Temperature Range (-30°C ~ +50°C) | Suitable for extreme working environments. |
| ⏱️ Lifespan >50,000 Hours | Long-lasting and low-maintenance lighting solution. |
| 🪛 Easy Installation | Supports hook, chain, and bracket mounting methods. |
| Parameter | Specification |
|---|---|
| Power Options | 100W / 150W / 200W / 240W |
| Luminous Efficacy | 140–170 lm/W |
| Input Voltage | AC100–277V / 220–240V |
| Power Factor | >0.93 |
| Beam Angles | 90° |
| CCT | 3000K / 4000K / 5000K / 5700K/ 6500K |
| CRI |
Ra 70/ 80＋ |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Housing Material | Die-cast Aluminum + PC Lens |
| Lifespan | 50,000 Hours |
| Working Temp | -30°C ~ +50°C |
| Control Options | 0–10V / DALI / Microwave Sensor |
| Certifications | CE / RoHS / ETL / DLC / SAA |
| Warranty | 5 Years |
Engineered to perform in demanding industrial conditions, the HB15 features comprehensive protection for safety and reliability.
| Protection Type | Description | |
|---|---|---|
| 🌧️ | IP65 Waterproof | Ideal for dusty, humid, and wet environments. |
| ⚡ | 6KV/10KV Surge Protection | Protects against electrical surges and power fluctuations. |
| 🌡️ | Optimized Thermal Management | Die-cast aluminum housing with excellent heat dissipation. |
| 🔋 | Stable Driver Design | Flicker-free, high-efficiency driver ensures consistent performance. |
| 🧊 | Corrosion-Resistant Coating | Ensures durability even in coastal or chemical factory environments. |
🔬 Optical Design & Performance
The HB15 High Bay Light adopts precision optical lenses and a high CRI LED package to ensure uniform illumination and excellent visual comfort.
| Feature | Description | |
|---|---|---|
| 🔍 | Uniform Light Distribution | Even brightness without glare or dark zones. |
| 💡 | High Color Rendering (Ra>80) | Improves visual clarity and object recognition. |
| 🔆 | Flicker-Free Design | Safe for camera monitoring and production accuracy. |
📈 Optimized optical performance for visual comfort and productivity.
🏭 Application Scenarios
| Scenario | |
|---|---|
| 🏗️ | Manufacturing Plants & Workshops |
| 🚛 | Logistics & Distribution Centers |
| 🏢 | Commercial Warehouses |
| 🧊 | Cold Storage & Freezer Facilities |
| 🏬 | Retail Halls & Exhibition Centers |
| 🛠️ | Industrial Production Lines |
💡 High lumen, wide beam, and stable lighting performance for every industrial space.
Nuestras luces cuentan con una carcasa aerodinámica hecha de aluminio de alta pureza, lo que garantiza una refrigeración eficiente y una vida útil prolongada.
Nuestro sistema de control inteligente ofrece monitoreo remoto y ajustes automáticos, mejorando la eficiencia de la gestión.
Nuestras luces utilizan LED de alta eficiencia para retrasar la pérdida de luz y mantener una iluminación óptima.
Elija entre varios niveles de potencia
Para satisfacer sus necesidades de iluminación.
Varios colores y materiales para adaptarse.
diferentes entornos y necesidades.
Sistemas de control inteligentes para una gestión eficiente
gestión remota.
Diversos métodos de instalación para adaptarse a diferentes necesidades ambientales.
Alta protección y diseño de enfriamiento efectivo para mayor durabilidad.
Marca y embalaje personalizados para mejorar su imagen.
Los productos están sujetos a múltiples certificaciones técnicas y pruebas como CE, BIS e ISO 9001 cada año según los requisitos del cliente, garantizando el cumplimiento de los estándares internacionales de seguridad, calidad y eficiencia.
Considere las patentes para cada tecnología para garantizar la protección legal y la exclusividad del mercado.
Los procesos de producción relevantes se han actualizado a estándares internacionales.
El 10% de las ganancias se invierte anualmente en la mejora continua de los productos.
