Name: LED Stadium Light GameAres
Brand: ZCLEDS
Availability: InStock

Elija forma y tamaño: explore nuestras opciones de forma y tamaño y seleccione la que mejor se adapte a su diseño.

Confirmar pedido: Aprueba la maqueta y los detalles del pedido y comenzaremos la producción.

Producción rápida: El proceso de producción eficiente garantiza que su pedido se complete en poco tiempo.

Envío global: Apoyamos el envío global para garantizar que sus productos le lleguen rápidamente.

[{"id":47266790736110,"title":"600W","option1":"600W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 600W","public_title":"600W","options":["600W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790768878,"title":"800W","option1":"800W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 800W","public_title":"800W","options":["800W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790801646,"title":"1000W","option1":"1000W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 1000W","public_title":"1000W","options":["1000W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790834414,"title":"1200W","option1":"1200W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 1200W","public_title":"1200W","options":["1200W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790867182,"title":"1500W","option1":"1500W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 1500W","public_title":"1500W","options":["1500W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790899950,"title":"1650W","option1":"1650W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 1650W","public_title":"1650W","options":["1650W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47266790932718,"title":"1800W","option1":"1800W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light GameAres - 1800W","public_title":"1800W","options":["1800W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

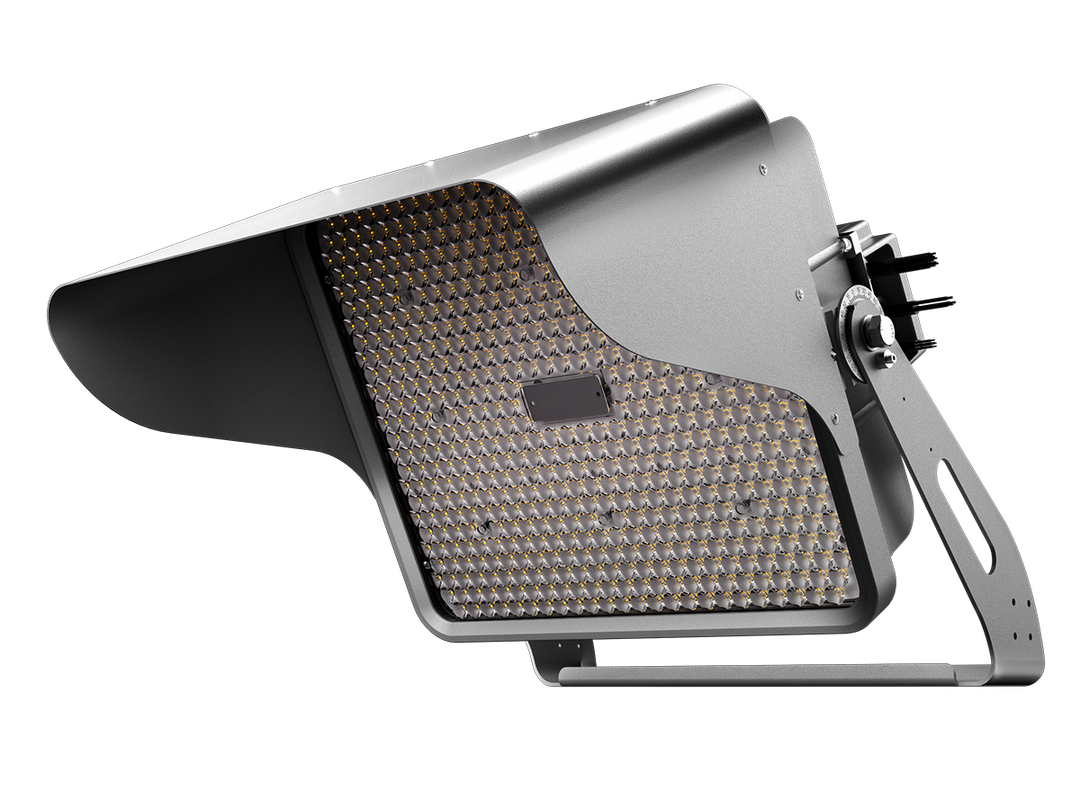

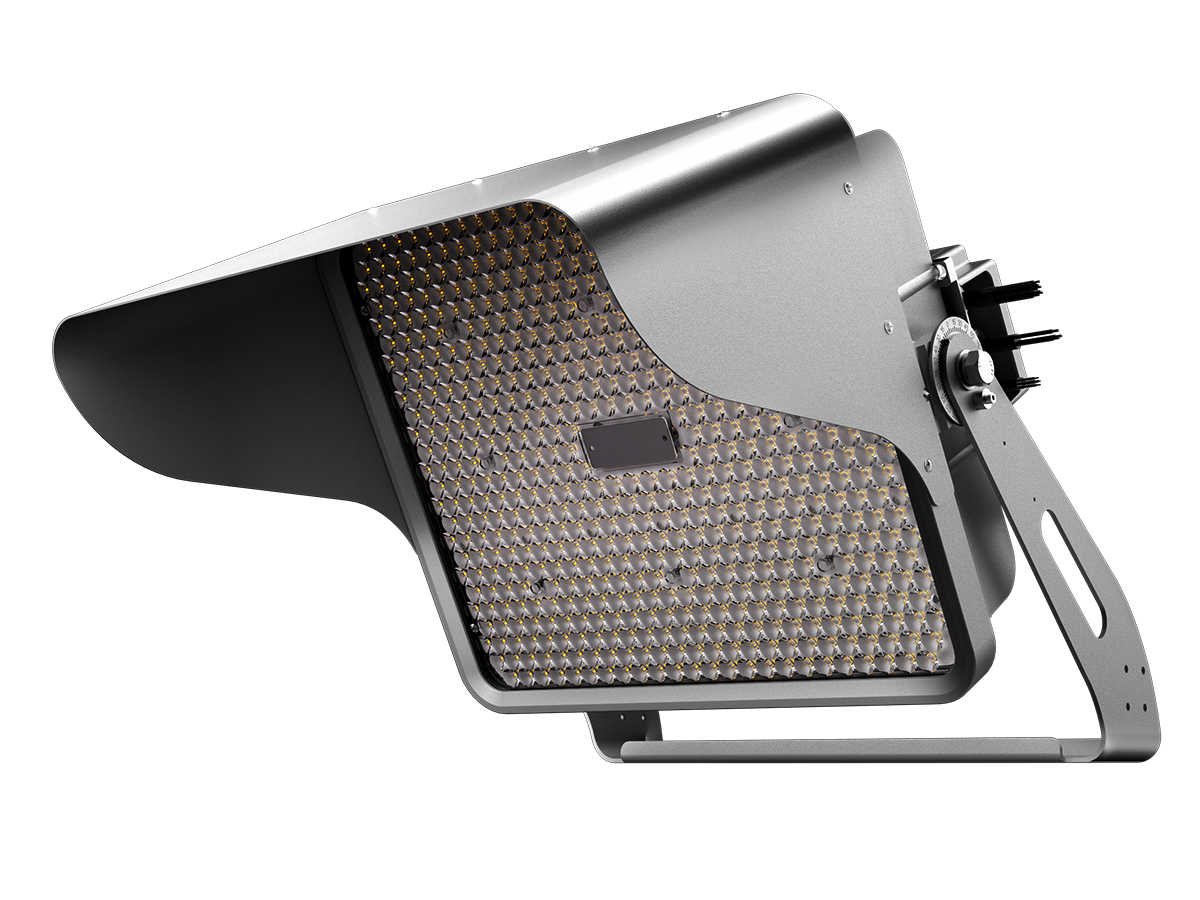

ZC Lighting's GameAres series of LED stadium lights are flagship products designed specifically for international sporting events, high-definition television broadcasts, and large arenas. The GameAres series represents the highest standard of lighting technology, dedicated to providing athletes, spectators, and broadcasters with an unparalleled lighting environment experience.

Key Features

	Feature	Description
💡	Ultra-High Efficiency	178 lm/W sports-grade illumination
🎯	Professional Beam Angles	20° , 10° , 15° , NB-P60 optics for long-throw
🔁	Modular Design	Quick maintenance & scalable power configuration
🌀	Advanced Heat Dissipation	Multi-layer fins + heat-pipe optional
🔧	Adjustable Bracket	±270° aiming for stadium precision
🚫	Low Glare System	UGR optimized for TV broadcasting
🔌	Driver Options	Meanwell / Inventronics / Sosen available
📱	Smart Control	DALI / 0-10V dimming / ZigBee control
🏷️	Full OEM Support	Color, power, logo, and packaging customizations

📐 Product Specifications

Parameter	Specification
Power Options	600W / 800W / 1000W / 1200W / 1500W / 1650W / 1800W
Luminous Efficacy	145–178 lm/W
Input Voltage	AC100-277V/ 277-480V
Power Factor	>0.95
Beam Angles	T2/T3/T4
CCT	3000K / 4000K / 5000K / 5700K/ 6500K
CRI	Ra 70/ 80＋
IP Rating	IP66
IK Rating	IK08, IK10 optional
Housing Material	Die-cast Aluminum + PC Lens
Lifespan	50,000 Hours
Working Temp	-30°C ~ +50°C
Control Options	0–10V / DALI / Microwave Sensor
Certifications	CE / RoHS / ETL / DLC / SAA
Warranty	5 Years

🛡️ Protection & Reliability

	Protection Feature	Description
🛡️	IP66 Waterproof	Withstands rain, dust, and outdoor weather all year long
⚡	10kV/20kV Surge Protection	Ensures safety during lightning & grid fluctuation
🌡️	Wide Temperature Range	-30°C to +50°C stable operation
🔥	High Thermal Conductive Housing	Die-cast aluminum + rapid heat dissipation
🧱	IK08 / IK10 Impact Resistance	Suitable for stadium environments
🧪	50,000 Hours Lifespan	Industrial-grade reliability

🔬 Optical Design & Performance

	Optical Feature	Description
🎯	Long-Throw Optics	Designed for 80–200 meters projection
🔍	Precision Beam Control	Multiple lenses optimize vertical & horizontal uniformity
📐	Perfect Uniformity	Eliminates dark spots & enhances visibility
📺	TV Broadcast Ready	Low flicker + anti-glare system
🌓	Low UGR Design	Comfortable lighting for spectators & athletes
📊	IES Files Provided	Supports Dialux / AGi32 simulation

Installation Options

	Method	Description
🔩	Adjustable Bracket	Standard option, suitable for all poles & walls
🎯	Aiming Scale	Ensures accurate direction for stadium fields
🧱	High-Mast Mounting	For poles up to 45 meters

Certifications

	Certification
🏅	DLC
🛠️	ETL
♻️	CE
🌿	RoHS

🏭 Application Scenarios

	Scenario
⚽	Football Fields & Soccer Stadiums
🏀	Basketball & Multipurpose Arenas
🎾	Tennis Courts
🏟️	Professional Stadiums & Arenas
🚩	High Mast Lighting
🏭	Ports, Airports, Outdoor Industrial Sites

DISEÑO DE ILUMINACIÓN PERSONALIZADA

Asegúrese de que su proyecto cumpla con el código local y cumpla con los niveles de iluminación requeridos con diseños personalizados creados por el equipo de diseño de ZC Lighting.

Organiza juegos y torneos de alto nivel

Cumpla con los requisitos de las ligas superiores con niveles de iluminación adecuados.

Más de 10 años de experiencia en iluminación LED

Casos exitosos de asociación de marca compartida y soluciones tecnológicamente avanzadas continuas

¿Estás luchando con estos problemas de iluminación típicos?

❓¿Se ha reducido la vida útil debido a una mala disipación del calor?

Nuestras luces cuentan con una carcasa aerodinámica hecha de aluminio de alta pureza, lo que garantiza una refrigeración eficiente y una vida útil prolongada.

❓¿Le preocupa que interfieran con otros equipos?

Nuestro sistema de control inteligente ofrece monitoreo remoto y ajustes automáticos, mejorando la eficiencia de la gestión.

❓¿Has notado una disminución de la luminosidad con el paso del tiempo?

Nuestras luces utilizan LED de alta eficiencia para retrasar la pérdida de luz y mantener una iluminación óptima.

¿Cómo puede ZC Lighting personalizar sus soluciones de iluminación LED?

Energía y CCT

Elija entre varios niveles de potencia

Para satisfacer sus necesidades de iluminación.

Opciones de diseño

Varios colores y materiales para adaptarse.

diferentes entornos y necesidades.

Control inteligente

Sistemas de control inteligentes para una gestión eficiente

gestión remota.

Montaje versátil

Diversos métodos de instalación para adaptarse a diferentes necesidades ambientales.

Refrigeración protectora

Alta protección y diseño de enfriamiento efectivo para mayor durabilidad.

Marca y embalaje

Marca y embalaje personalizados para mejorar su imagen.

Certificaciones

Los productos están sujetos a múltiples certificaciones técnicas y pruebas como CE, BIS e ISO 9001 cada año según los requisitos del cliente, garantizando el cumplimiento de los estándares internacionales de seguridad, calidad y eficiencia.

45 +

Patente certificada

Considere las patentes para cada tecnología para garantizar la protección legal y la exclusividad del mercado.

50 +

Equipos de producción

Los procesos de producción relevantes se han actualizado a estándares internacionales.

10%

Nuevos gastos de I+D

El 10% de las ganancias se invierte anualmente en la mejora continua de los productos.
