Name: LED Stadium Light SP02
Brand: ZCLEDS
Availability: InStock

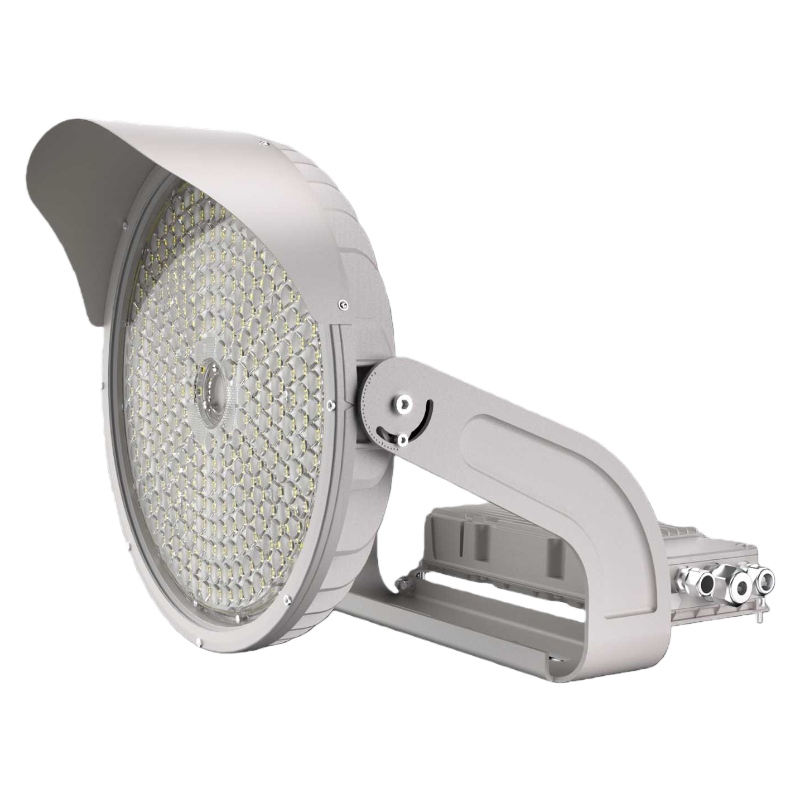

stadium light fixture on a black background

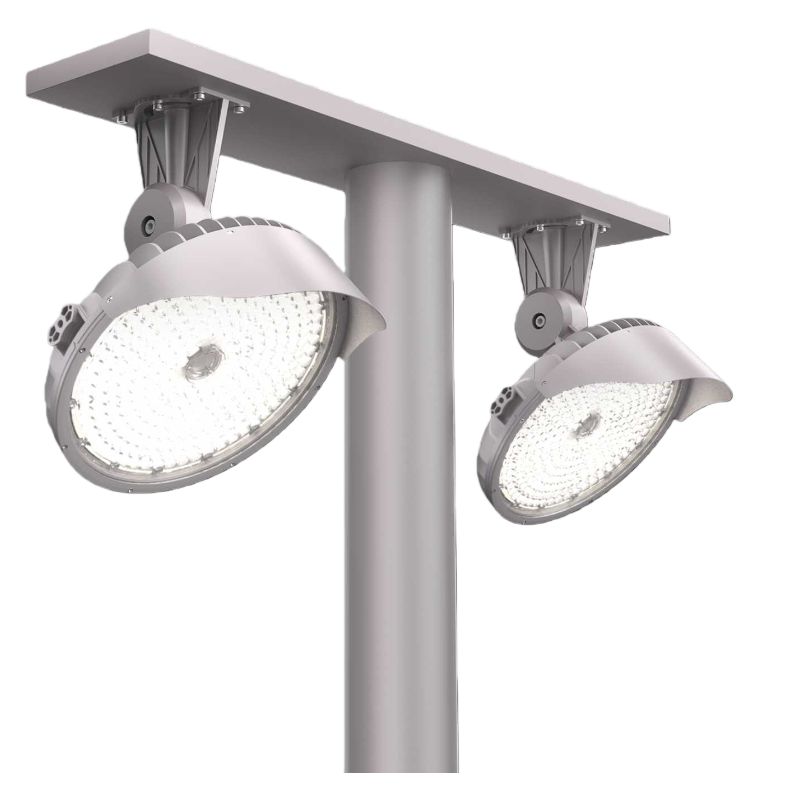

stadium light fixture with two circular lights on a black background

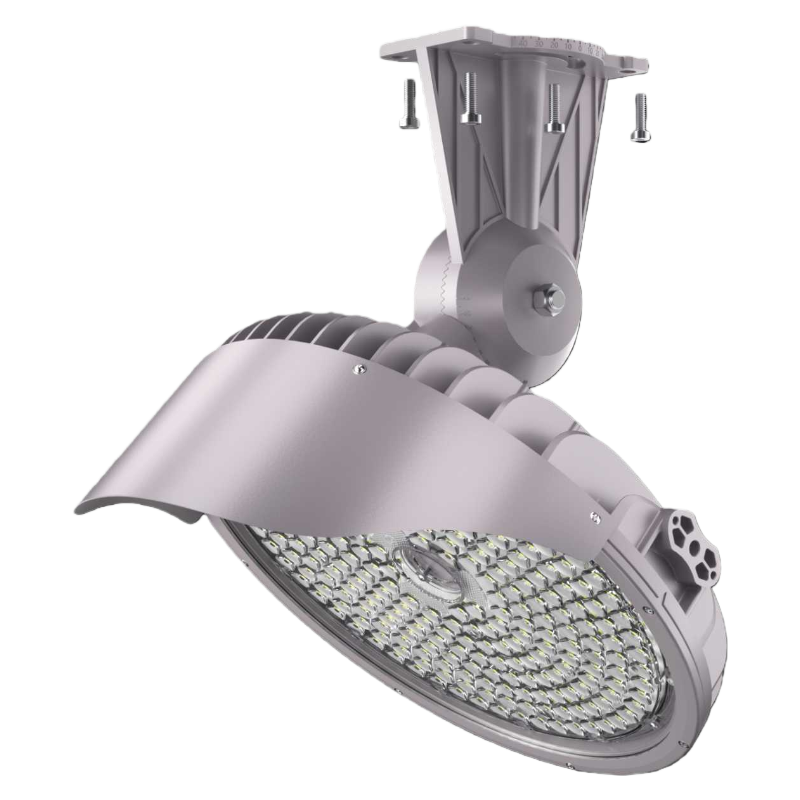

Ceiling-mounted LED light fixture on a white background

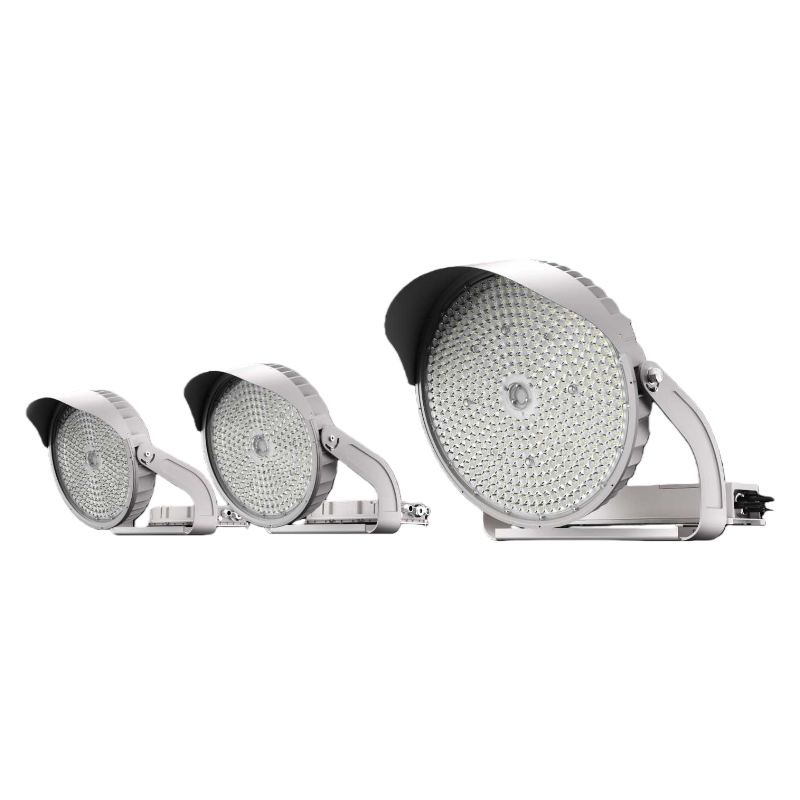

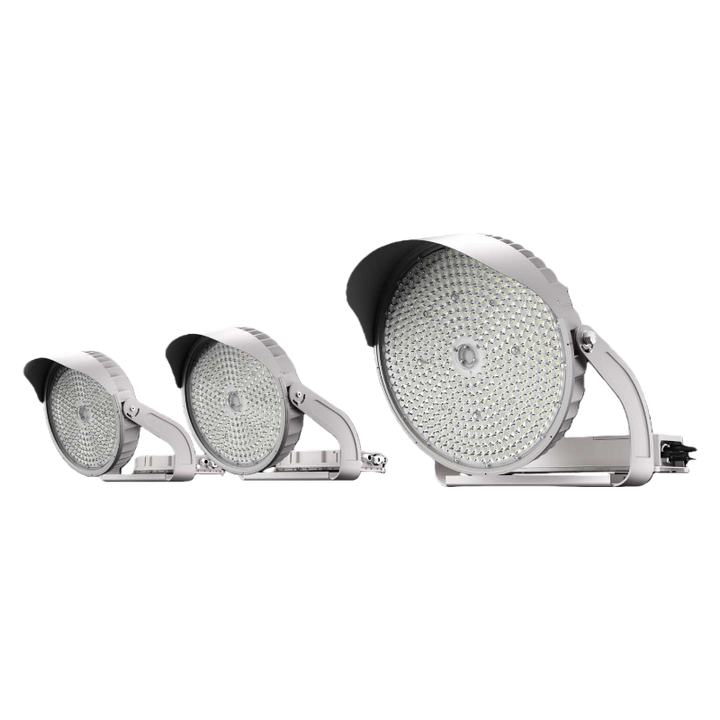

Set of three circular metal lights on a white background

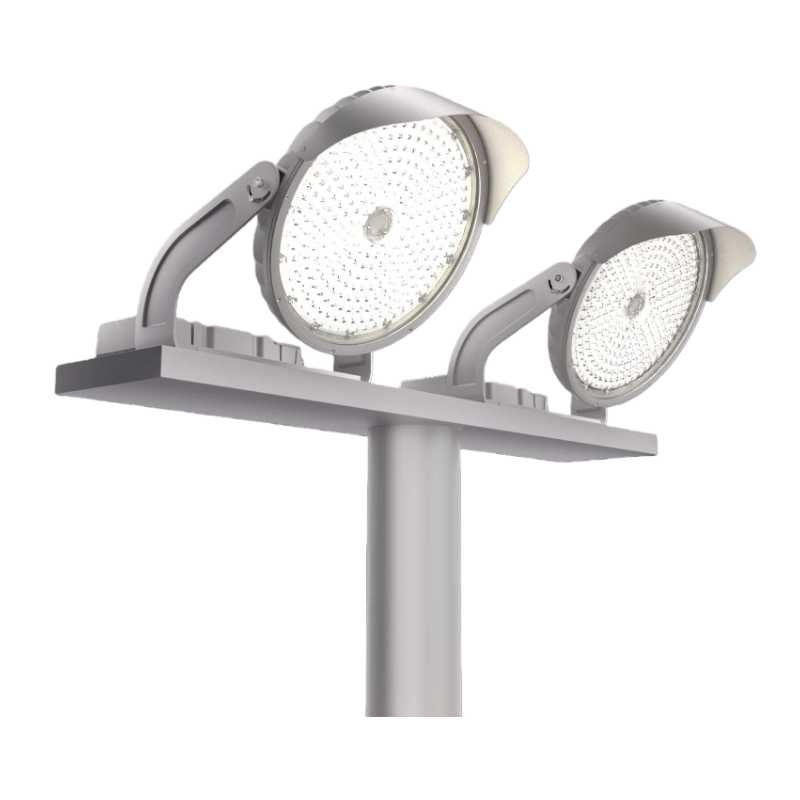

Two outdoor floodlights on a white background

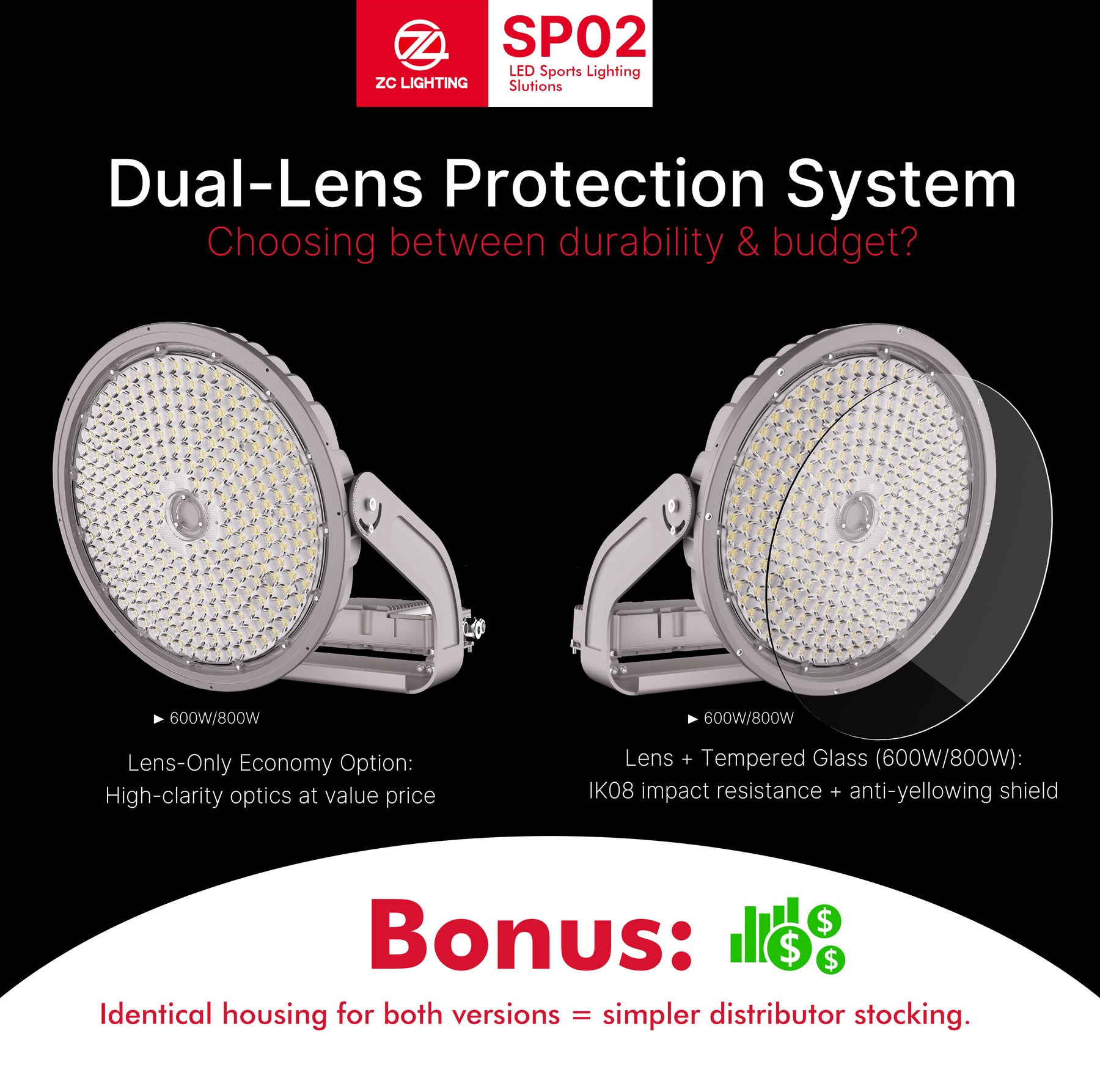

ZC Lighting SP02 dual-lens protection system with text on durability and budget.

Choose Shape and Size: Browse our shape and size options and select the best fit for your design.

Confirm Order: Approve the mockup and order details, and we will begin production.

Fast Production: Efficient production process ensures your order is completed in a short time.

Global Shipping: We support global shipping to ensure your products reach you quickly.

[{"id":47096355389678,"title":"500W","option1":"500W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 500W","public_title":"500W","options":["500W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47096316461294,"title":"600W","option1":"600W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 600W","public_title":"600W","options":["600W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47096316494062,"title":"750W","option1":"750W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 750W","public_title":"750W","options":["750W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47096316526830,"title":"800W","option1":"800W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 800W","public_title":"800W","options":["800W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47096316559598,"title":"1000W","option1":"1000W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 1000W","public_title":"1000W","options":["1000W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47096316592366,"title":"1200W","option1":"1200W","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LED Stadium Light SP02 - 1200W","public_title":"1200W","options":["1200W"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Professional-grade stadium lighting solution for sports venues, arenas, and large outdoor fields. Instant on, energy-efficient, and control-ready for modern projects.

The ZC Lighting SP02 LED Stadium Light is engineered for professional sports venues, offering exceptional brightness, uniform beam distribution, and robust durability. With advanced optical lenses and a high lumen efficiency of up to 175lm/W, it ensures optimal lighting performance for football fields, arenas, and large outdoor facilities.

Key Features

💡 Ultra High Brightness: 500W–1200W power options with up to175,000 lumens output.
⚙️ Precision Optics: Multiple beam angles (15°, 25°, 40°,60°) for flexible lighting designs.

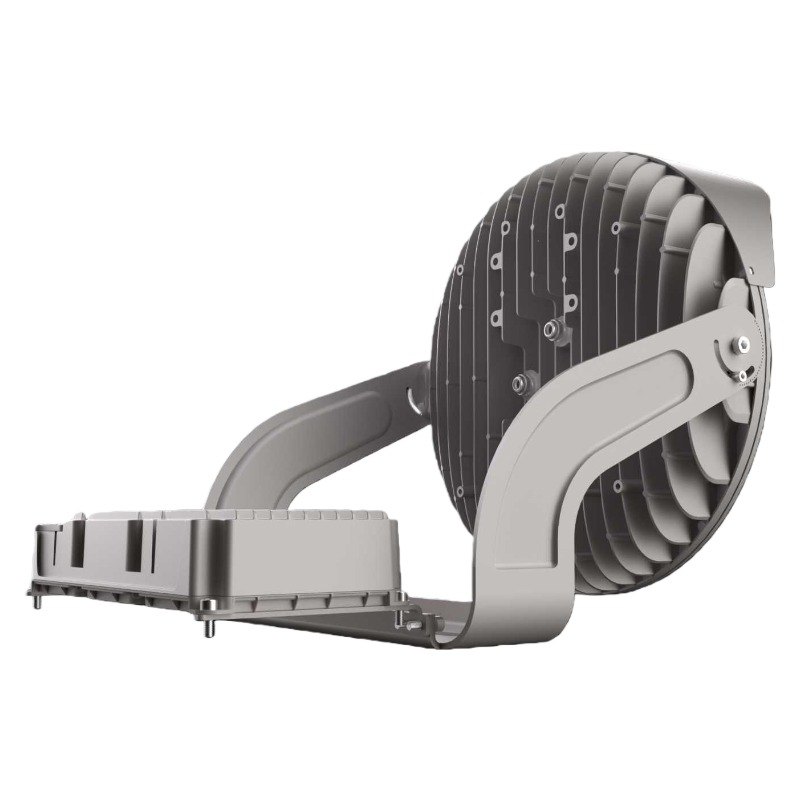

🧊 Advanced Thermal Management: Aluminum heat sink for optimal cooling and long lifespan (L70 > 50,000h).
🌧️ IP66 & IK10/ IK20 Rated: Resistant to rain, dust, and impact – ideal for outdoor stadium environments.
🔌 Smart Control Ready: Supports 0-10V dimming, DALI, and DMX512 systems for intelligent lighting control.
🏟️ Wide Application: Perfect for football fields, tennis courts, airports, docks, large parking lots, and industrial yards.

📐 Product Specifications

Parameter	SP02-500W	SP02-600W	SP02-750W	SP02-800W	SP02-1000W	SP02-1200W
Power (W)	500W	600W	750W	800W	1000W	1200W
Input Voltage	AC176-500V/198-440V/100-277V
Luminous Efficacy	170 Lm/W	160 Lm/W	155 Lm/W	150 Lm/W	175 Lm/W	155 Lm/W
Luminous Flux	85,000 Lm	96,000 Lm	116,250 Lm	120,000 Lm	175,000 Lm	186,000 Lm
Beam Angle	15°, 25°, 40°, 60°
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	70 / 80 / 90 (TLCI90 optional)
SDCM	6
Power Factor	≥0.95
THD	<15%
Percent Flicker	<1%

⚙️Machinery & Materials

Parameter	SP02-500W	SP02-600W	SP02-750W	SP02-800W	SP02-1000W	SP02-1200W
Structure Material	ADC12 die-cast aluminum heat sink, Steel metal U-bracket
Surface Finish	Powder coated (Gray, black optional)
Lens	PC Lens / PC Lens + Tempered Glass
Bracket	Die-cast U-bracket with reinforcement ribs
Aiming	Aiming 180° rotation

🔒Protection & Reliability

Parameter	SP02-500W	SP02-600W	SP02-750W	SP02-800W	SP02-1000W	SP02-1200W
IP Rating	IP66
IK Rating	IK08, IK10 optional
Protection Class	Class I
Operating Temperature	-40°C ~ +50°C (-40°F ~ +122°F)
Lifetime	50,000 hours (L70)
Warranty	5 years
Surge Protection	10kV, 20Kv optional
EPA(ft²）	0.269

Custom Lighting DESIGN

Ensure your project is up to local code and meets required light levels with custom layouts created by the ZC Lighting design team.

Host Higher-Level Games + Tournaments

Meet higher league requirements with proper lighting levels.

10+ Years Led Lighting Experiences

Successful Co-Branding Partnership Cases and Continuous Technologically Advanced Solutions

Are You Struggling With These Typical Light Problems?

❓Faced reduced lifespan due to poor heat dissipation?

Our lights feature a streamlined shell made of high-purity aluminum, ensuring efficient cooling and extended service life.

❓Worried about them interfering with other equipment?

Our smart control system offers remote monitoring and automatic adjustments, enhancing management efficiency.

❓Noticed luminous decay over time with them?

Our lights use high-efficiency LEDs to delay light decay, maintaining optimal illumination.

How can ZC Lighting customize your LED lighting solutions?

Power & CCT

Choose from various power levels

to meet your lighting needs.

Design Options

Various colors and materials to suit

different environments and needs.

Smart Control

Smart control systems for efficient

remote management.

Versatile Mounting

Various installation methods to suit different environmental needs.

Protective Cooling

High protection and effective cooling design for durability.

Branding & Packaging

Custom branding and packaging to enhance your image.

Certifications

Products are subject to multiple technical certifications and tests such as CE, BIS and ISO 9001 every year according to customer requirements, ensuring compliance with international safety, quality, and efficiency standards.

45 +

Certified Patent

Consider patents for each tech to ensure legal protection and market exclusivity
