Full-cutoff optical design with symmetric, asymmetric, and road-type beam distributions for airports, sports fields, roadways, and plazas.
C0-C180 Vertical Plane | C90-C270 Horizontal Plane
Precision targeting for airport aprons, professional sports
Throw Distance 90-110m
Balanced coverage for training fields, general stadiums
Uniformity >0.8
Large area flood for plazas, parking lots
Coverage 35m @ 30m height
Dedicated for tracks, swimming lanes, exceptional uniformity
Application Athletics/Aquatics
Combining full-cutoff optics with modular scalability for aviation, sports, and large-area outdoor lighting applications.
0% uplight, eliminates light pollution, compliant with Dark Sky standards.
200W-1200W flexible configurations, single/dual module options.
3G vibration tested, IP66/IK08 protection, withstands harsh environments.
>150lm/W efficacy, CRI Ra>80, true color rendering.
360° horizontal, ±90° vertical adjustment with scale markings.
Passed 12-grade typhoon test, ADC12 die-cast aluminum housing.
DALI/0-10V/DMX512 optional, integrates with smart systems.

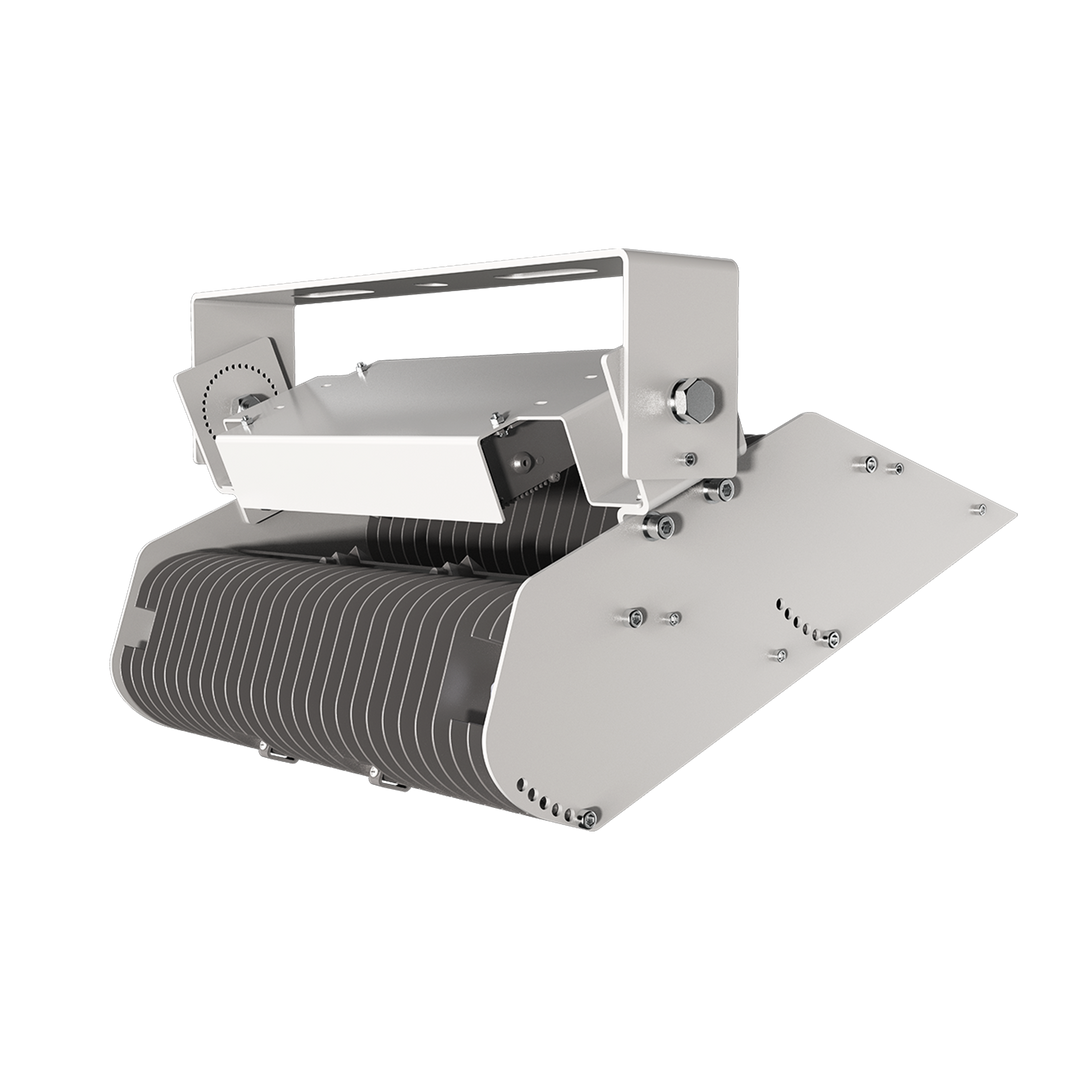

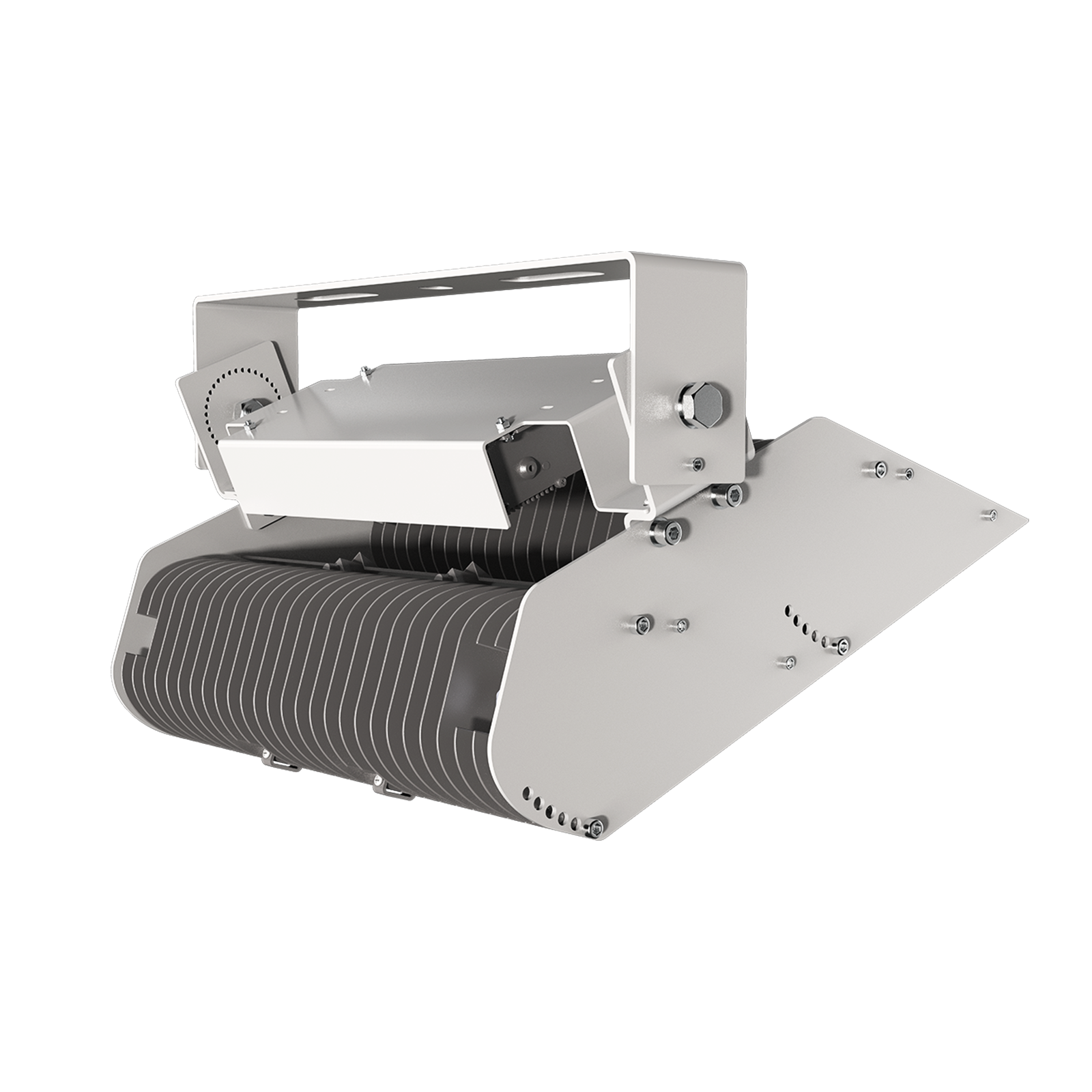

Independent heat pipes + fins, lifetime >50,000 hours.
360° Horizontal Rotation + ±70° Vertical Tilt

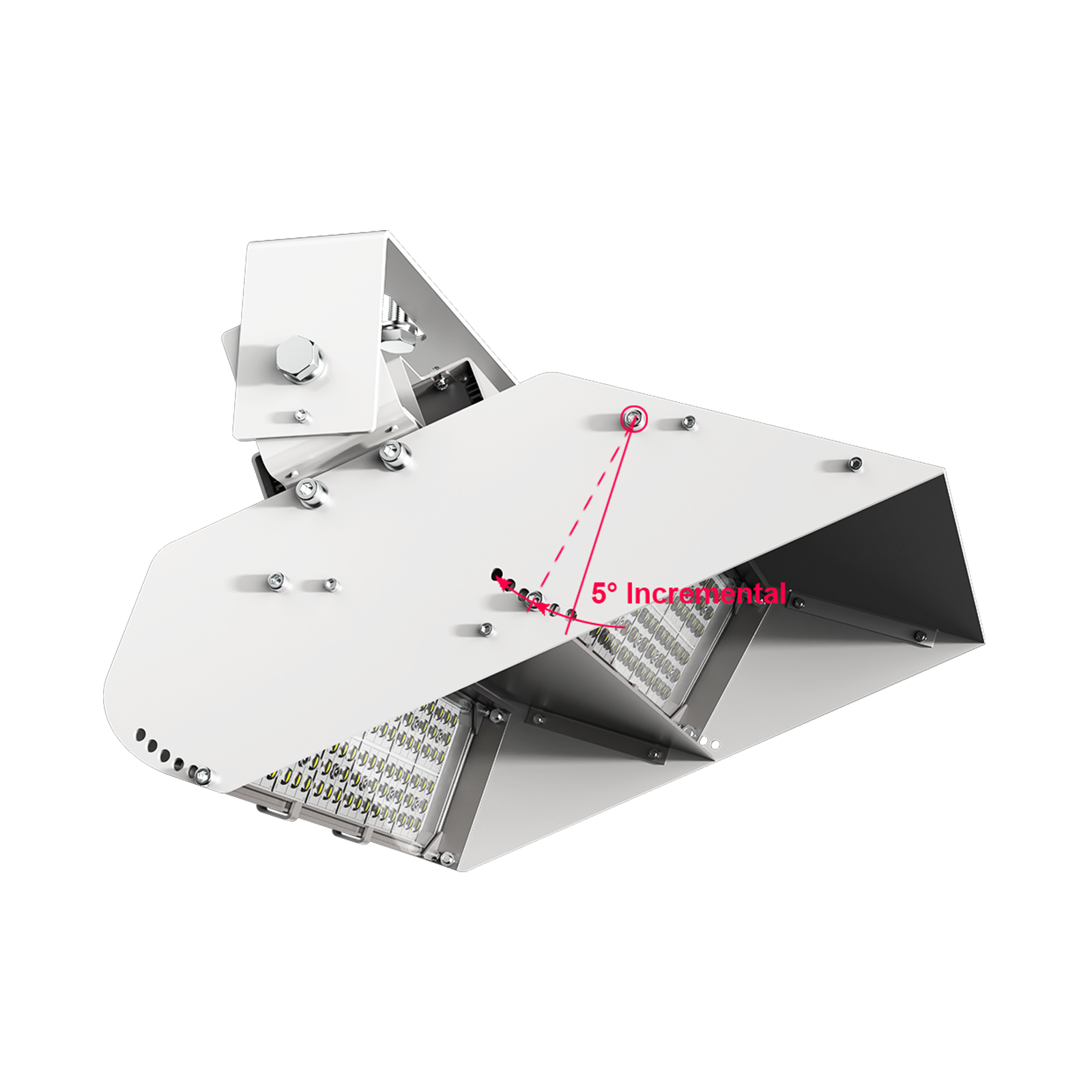

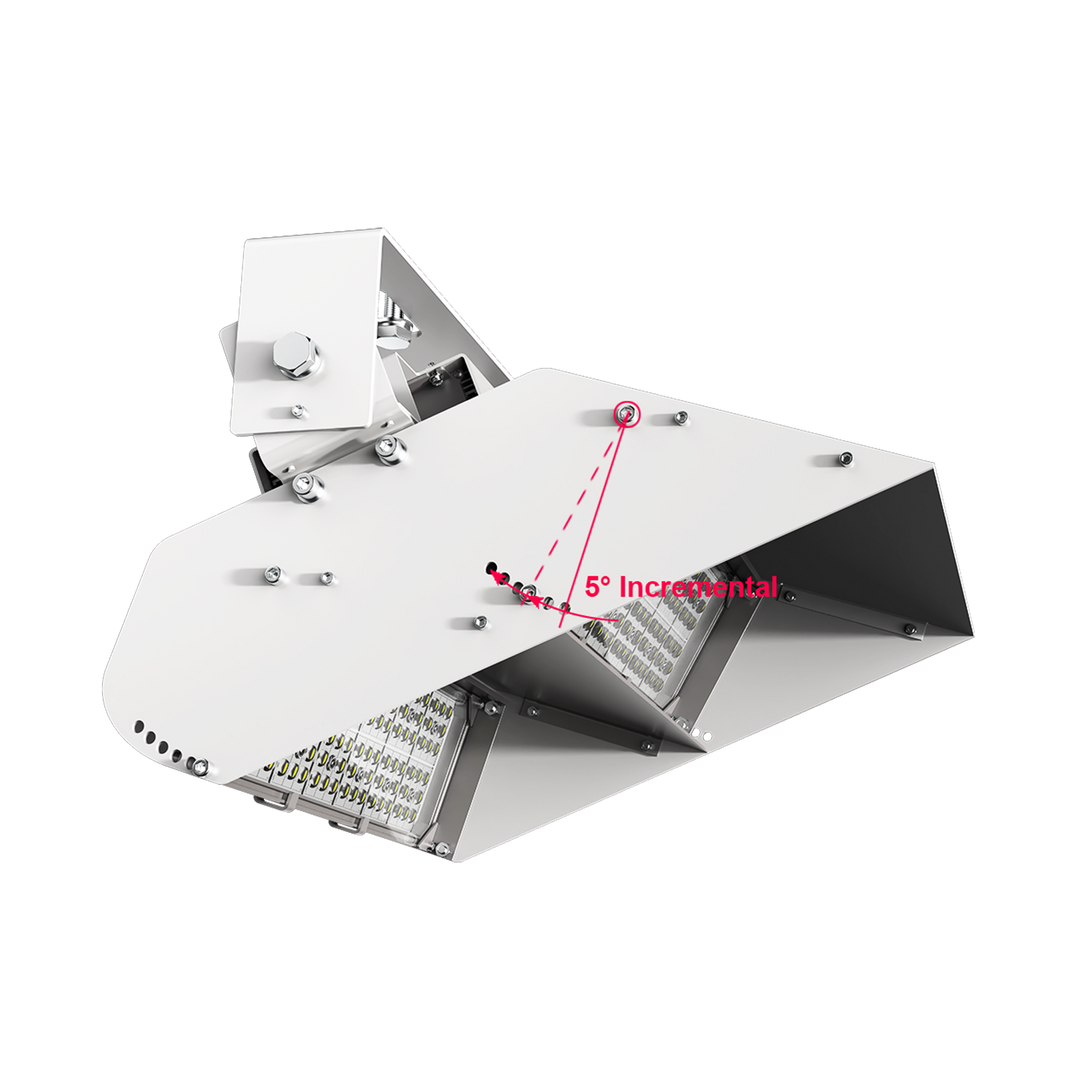

FL20 features an advanced dual-axis precision aiming system with 360° continuous horizontal rotation and ±45° vertical adjustment range, featuring precision scale markings for exact angle replication.
3G Vibration Certified + IP66/IK08 Protection
Exceeds aviation industry standards with 3G vibration testing, ensuring stable operation in high-vibration airport environments including jet blast zones.
Full-Cutoff Optics + Multi-Gradient Distribution
Full-cutoff design fundamentally eliminates uplight-induced glare. Combined with precision reflectors and lens combinations, achieving high uniformity across illuminated areas.
Comprehensive technical data for aviation and sports applications
Module Power: 200W / 300W per module
Configuration: 1-4 modules (200W-1200W total)
Input Voltage: AC 100-277V / 198-440V
Beam Angles: 10° / 15° / 20° / P60
Uplight: 0% (Full cutoff)
Optical Efficiency: 94%
CRI: Ra≥70 (Ra≥80/90 optional)
CCT Options: 3000K / 4000K / 5000K / 5700K
IP Rating: IP66
IK Rating: IK08
Heat Sink: Die-cast ADC12 aluminum
Bracket: SPCC steel (3G vibration tested)
Operating Temp: -40°C to +50°C
Lifetime: 50,000+ Hours (L90B10)
Warranty: 5 Years Standard
Mounting: U-bracket
Rotation: 360° horizontal
Tilt: ±70° vertical adjustment
Dimming: DALI / DMX512 / 0-10V (optional)
Certifications: CE, RoHS, Aviation-grade

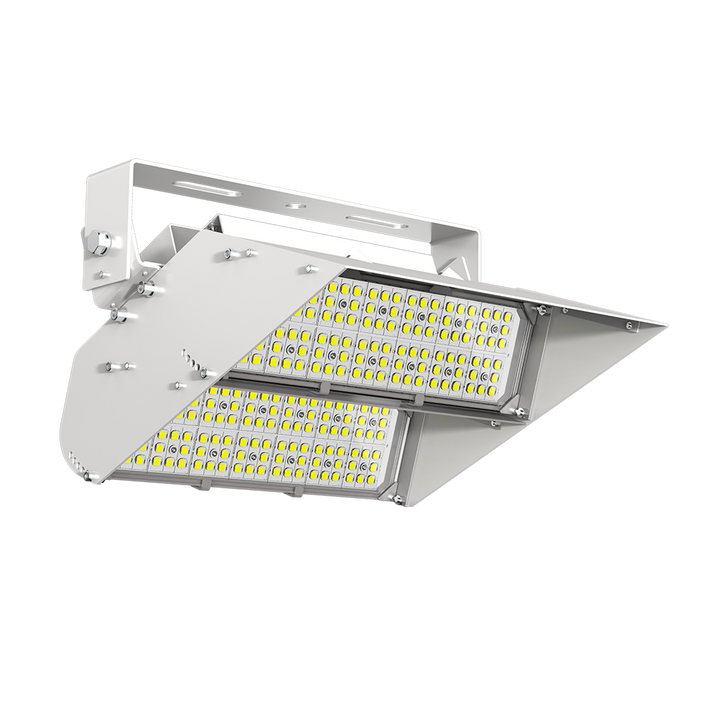

FL20 features aviation-grade full-cutoff optical design achieving absolute zero uplight radiation. The precision-engineered optical shielding system ensures 100% of light output is directed downward, meeting the most stringent dark sky protection requirements for airport apron lighting and environmentally sensitive facilities.
This full-cutoff design eliminates sky glow, reduces light pollution, and prevents interference with aviation navigation – critical for airport operations. The optical system maintains 94% transmission efficiency while achieving complete uplight control, making FL20 ideal for airports, sports facilities near residential areas, and nature reserves.
FL20 excels in aviation, sports, and large-area outdoor lighting applications where uplight control is essential.
Precision lighting for aircraft parking, maintenance areas, and ground operations with 0% uplight to ensure pilot visibility and safety.
Professional-grade illumination for football, soccer, rugby, and multi-purpose stadiums with high uniformity and minimal glare for athletes and spectators.
Highway and roadway lighting with asymmetric beam patterns for uniform coverage and reduced light trespass into adjacent areas.
Architectural and public space lighting that enhances safety and aesthetics while maintaining dark sky compliance.
Heavy-duty lighting for cargo handling, container yards, and docking areas with high vibration resistance and durability.
Factory premises, warehouses, and logistics centers requiring reliable, energy-efficient illumination for 24/7 operations.
Practice fields, tennis courts, and training grounds with flexible beam options for optimal coverage.
Large-area parking facilities with wide beam distributions for uniform illumination and enhanced security.
